Technical Specifications
Triad Magnetics FP30-200 technical specifications.
General
Approvals
UL
Height
0.875inch
Height - Seated (Max)
22.22mm
Lead Free
Lead Free
Length
47.63mm
Max Output Current
200mA
Mount
Through Hole, PCB
Output Voltage
15V
Package Quantity
20
Packaging
Bulk
Primary Winding(s)
Dual
Reach SVHC Compliant
No
RoHS Compliant
Yes
Secondary Winding(s)
Dual
Series
Flat Pack™
Termination
PC Pin
Weight
0.438lb
Width
39.67mm
Compliance
RoHS
Compliant
Datasheet
Triad Magnetics FP30-200 Datasheet
Download the complete datasheet for Triad Magnetics FP30-200 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

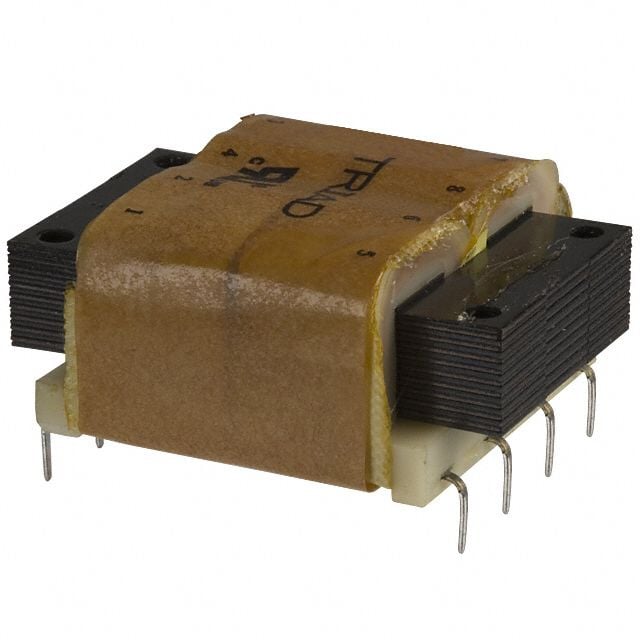

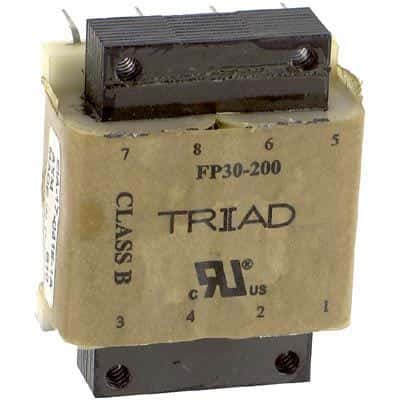

Product Images
