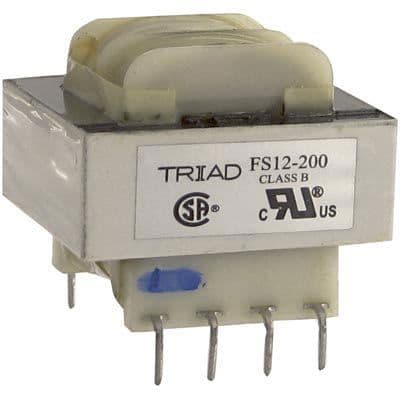

General purpose power transformer featuring dual primary and dual secondary windings. Rated for 2500Vrms isolation and 2.5VA power. Designed for through-hole PCB mounting with PC pin termination. Offers a maximum output current of 200mA and a current rating of 400mA. UL approved and lead-free, meeting RoHS compliance.
Current Rating400mA
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Triad Magnetics FS12-200 technical specifications.
General
| Approvals | UL |
| Current Rating | 400mA |
| Height - Seated (Max) | 30.15mm |
| Lead Free | Lead Free |
| Length | 34.93mm |
| Max Output Current | 200mA |
| Mount | Through Hole, PCB |
| Packaging | Rail/Tube |
| Primary Winding(s) | Dual |
| RoHS Compliant | Yes |
| Secondary Winding(s) | Dual |
| Series | Split Pack™ |
| Termination | PC Pin |
| Weight | 0.25lb |
| Width | 28.58mm |
Compliance
| RoHS | Compliant |
Datasheet
Triad Magnetics FS12-200 Datasheet
Download the complete datasheet for Triad Magnetics FS12-200 to view detailed technical specifications.
