Split bobbin power transformer, 6VA, featuring dual primary and dual secondary windings. Offers a 24V output voltage with a maximum output current of 250mA and a current rating of 500mA. Designed for through-hole PCB mounting with PC pin termination. UL approved and lead-free, this ROHS compliant component measures 41.28mm in length, 33.32mm in width, and 33.32mm in seated height.
Current Rating500mA
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Triad Magnetics FS24-250 technical specifications.
General
| Approvals | UL |
| Current Rating | 500mA |
| Height - Seated (Max) | 33.32mm |
| Lead Free | Lead Free |
| Length | 41.28mm |
| Max Output Current | 250mA |
| Mount | Through Hole, PCB |
| Output Voltage | 24V |
| Packaging | Rail/Tube |
| Primary Winding(s) | Dual |
| RoHS Compliant | Yes |
| Secondary Winding(s) | Dual |
| Series | Split Pack™ |
| Termination | PC Pin |
| Weight | 0.44lb |
| Width | 33.32mm |
Compliance
| RoHS | Compliant |
Datasheet
Triad Magnetics FS24-250 Datasheet
Download the complete datasheet for Triad Magnetics FS24-250 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

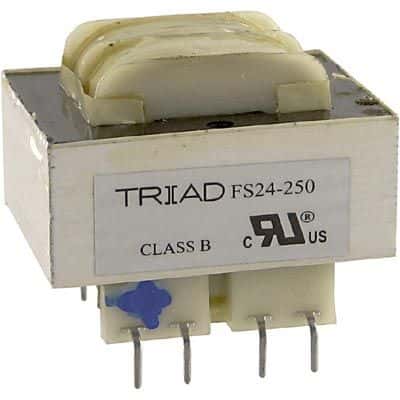

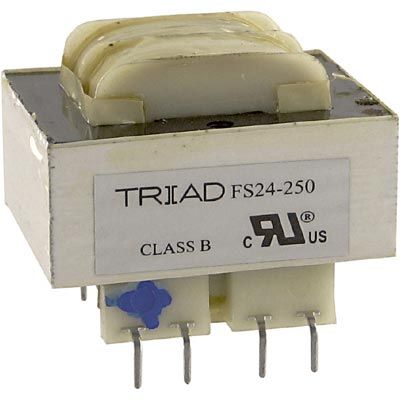

Product Images
