Frequency60Hz
Current Rating170mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Triad Magnetics FS28-85 technical specifications.
General
| Current Rating | 170mA |
| Frequency | 60Hz |
| Height | 0.937inch |
| Height - Seated (Max) | 30.15mm |
| Lead Free | Lead Free |
| Length | 34.93mm |
| Max Output Current | 85mA |
| Mount | Through Hole |
| Package Quantity | 84 |
| Packaging | Bulk |
| Primary Winding(s) | Dual |
| RoHS Compliant | Yes |
| Secondary Winding(s) | Dual |
| Series | Split Pack™ |
| Termination | PC Pin |
| Weight | 0.25lb |
| Width | 28.56mm |
Compliance
| RoHS | Compliant |
Datasheet
Triad Magnetics FS28-85 Datasheet
Download the complete datasheet for Triad Magnetics FS28-85 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

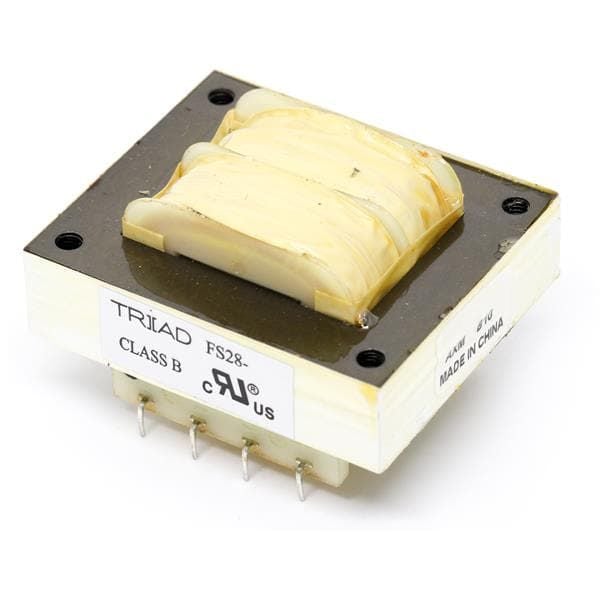

Product Images
