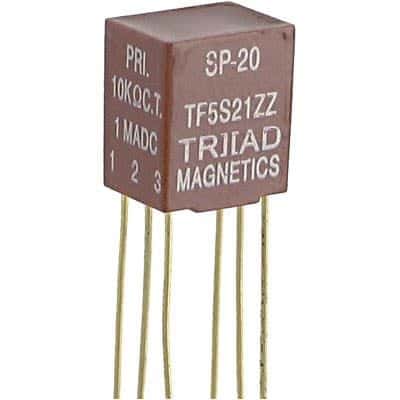

Audio and signal transformer designed for high reliability applications. Features a 10kΩ primary impedance and 1.2kΩ secondary impedance, with a 2.88:1 turns ratio. Operates across a frequency range of 300Hz to 100kHz, delivering 50mW output power and 150V DC rated voltage. This through-hole, PCB mount component offers 1kV isolation voltage and a current rating of 1mA, with a DC resistance of 1.05kΩ. Constructed with lead-free materials and RoHS compliant, it operates within a temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Triad Magnetics SP-20 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Application(s) | HIGH RELIABILITY |
| Current Rating | 1mA |
| DC Resistance (DCR) | 1.05kR |
| Frequency | 100kHz |
| Height | 11.8mm |
| Isolation Voltage | 1kV |
| Lead Free | Lead Free |
| Length | 7.874mm |
| Max Frequency | 100kHz |
| Min Frequency | 300Hz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Operating Frequency | 0.3 to 100 kHz |
| Output Power | 50mW |
| Output Voltage | 150V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Primary Impedance | 10kR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Secondary Impedance | 1.2kR |
| Series | Red-Spec |
| Termination | PC Pin |
| Turns Ratio | 2.88:1 |
| DC Rated Voltage | 150V |
| Width | 10.41mm |
| RoHS | Compliant |
