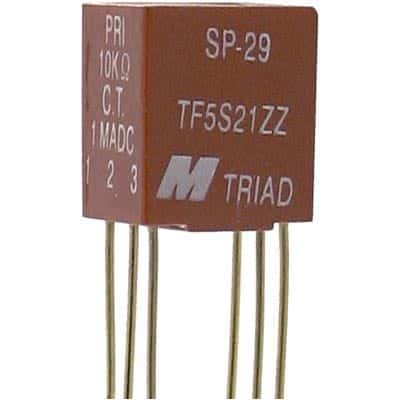

High reliability audio transformer with a 4.47:1 turns ratio, designed for through-hole PCB mounting. Features 1kV isolation voltage, 10kΩ primary impedance, and 500Ω secondary impedance. Operates across a frequency range of 0.3 to 100 kHz, with a maximum output power of 50mW and a current rating of 1mA. Primary DC resistance is 1.05kΩ, secondary DC resistance is 80Ω, and it supports a DC rated voltage of 150V. This lead-free, RoHS compliant component is suitable for high reliability applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Triad Magnetics SP-29 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Application(s) | HIGH RELIABILITY |
| Current Rating | 1mA |
| DC Resistance (DCR) | 1.05kR |
| Frequency | 100kHz |
| Height | 11.811mm |
| Isolation Voltage | 1kV |
| Lead Free | Lead Free |
| Length | 7.874mm |
| Max Frequency | 100kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Operating Frequency | 0.3 to 100 kHz |
| Output Power | 50mW |
| Package Quantity | 1 |
| Packaging | Bulk |
| Primary Impedance | 10kR |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Secondary Impedance | 500R |
| Series | Red-Spec |
| Termination | PC Pin |
| Turns Ratio | 4.47:1 |
| DC Rated Voltage | 150V |
| Weight | 0.4oz |
| Width | 10.41mm |
| RoHS | Compliant |
