TRIAD MAGNETICS

SP-4

Datasheet

Audio Transformer | 100kHz | 1kV Isolation | 200kR:1kR | TH

Triad Magnetics

SP-4

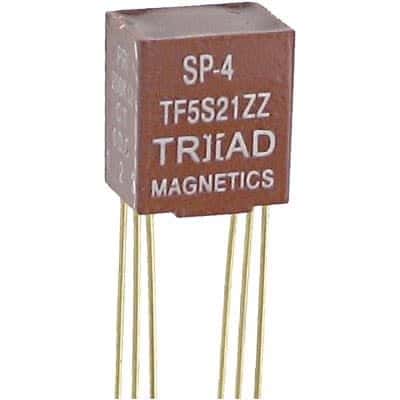

Name: SP-4 Triad Magnetics
Brand: Triad Magnetics
SKU: SP-4

Audio Transformer | 100kHz | 1kV Isolation | 200kR:1kR | TH

High-reliability audio transformer designed for PCB mounting. Features a 14.1:1 turns ratio, 200kΩ primary impedance, and 1kΩ secondary impedance. Operates across a frequency range of 0.3 to 100 kHz with a maximum output power of 10mW. Offers 1kV isolation voltage and a DC rated voltage of 150V. Constructed with lead-free materials and RoHS compliance, suitable for high-reliability applications.

Frequency100kHz

Current Rating0A

MountingThrough Hole, PCB

Power10mW

Quick Jump:

Technical Specifications

Triad Magnetics SP-4 technical specifications.

General

Application(s)	HIGH RELIABILITY
Current Rating	0A
DC Resistance (DCR)	5.3kR
Frequency	100kHz
Height	11.811mm
Isolation Voltage	1kV
Lead Free	Lead Free
Length	7.874mm
Max Frequency	100kHz
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Mount	Through Hole, PCB
Operating Frequency	0.3 to 100 kHz
Output Power	10mW
Package Quantity	1
Packaging	Bulk
Primary Impedance	200kR
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Secondary Impedance	1kR
Series	Red-Spec
Termination	PC Pin
Turns Ratio	14.1:1
DC Rated Voltage	150V
Weight	0.4oz
Width	10.41mm
