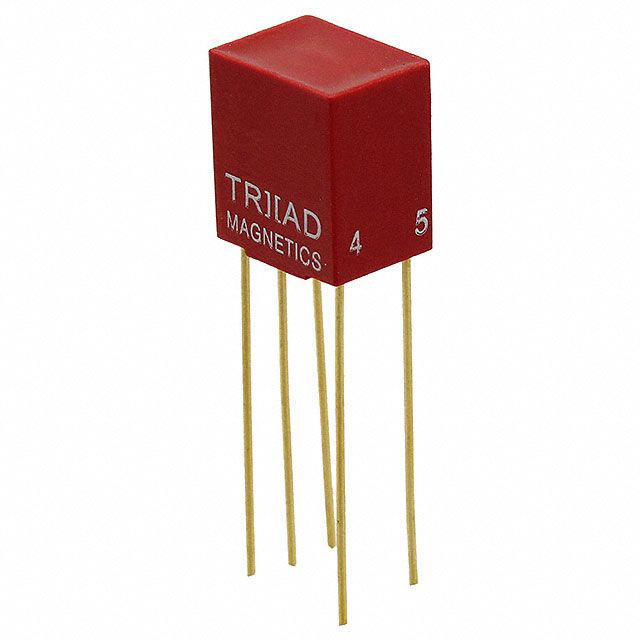

High-reliability audio transformer featuring a 1:1.42 turns ratio, 1kV isolation voltage, and a wide operating frequency range of 300Hz to 100kHz. This through-hole component offers 300 Ohm primary impedance and 600 Ohm secondary impedance, with primary DCR of 41 Ohms and secondary DCR of 98 Ohms. Designed for PCB mounting with 5 PC pin terminals, it supports a 7mA current rating and 50mW output power, operating between -40°C and 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Triad Magnetics SP-49 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Application(s) | HIGH RELIABILITY |
| Current Rating | 7mA |
| DC Resistance (DCR) | 41R |
| Height | 11.811mm |
| Isolation Voltage | 1kV |
| Lead Free | Lead Free |
| Length | 7.874mm |
| Max Frequency | 100kHz |
| Min Frequency | 300Hz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Operating Frequency | 0.3 to 100 kHz |
| Output Power | 50mW |
| Output Voltage | 150V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Primary Impedance | 300R |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Secondary Impedance | 600R |
| Series | Red-Spec |
| Termination | PC Pin |
| Turns Ratio | 1:1.42 |
| Weight | 0.4oz |
| Width | 10.41mm |
| RoHS | Compliant |
