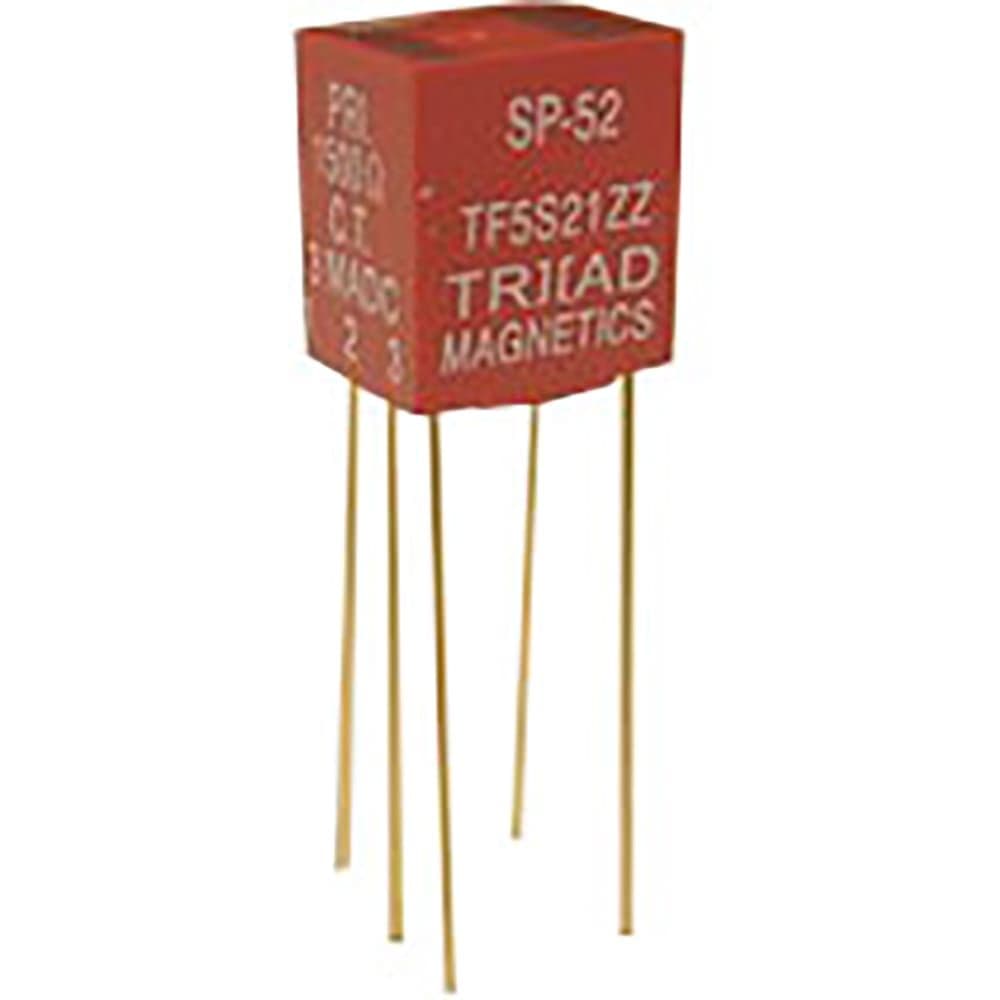

High-reliability audio transformer with a 1.58:1 turns ratio, designed for through-hole mounting with PC pin termination. Features 1kV isolation voltage, 1.5kΩ primary impedance, and 600Ω secondary impedance. Operates across a frequency range of 0.3 to 100 kHz, with a maximum output power of 50mW and a current rating of 3mA. Primary DCR is 168Ω, secondary DCR is 92Ω, and it supports a maximum operating temperature of 85°C. This lead-free, RoHS-compliant component is suitable for demanding applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Triad Magnetics SP-52 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Application(s) | HIGH RELIABILITY |
| Current Rating | 3mA |
| DC Resistance (DCR) | 168R |
| Height | 11.811mm |
| Isolation Voltage | 1kV |
| Lead Free | Lead Free |
| Length | 7.874mm |
| Max Frequency | 100kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Operating Frequency | 0.3 to 100 kHz |
| Output Power | 50mW |
| Package Quantity | 1 |
| Packaging | Bulk |
| Primary Impedance | 1.5kR |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Secondary Impedance | 600R |
| Series | Red-Spec |
| Termination | PC Pin |
| Turns Ratio | 1.58:1 |
| Weight | 0.4oz |
| Width | 10.41mm |
| RoHS | Compliant |
