SP-67

Datasheet

Audio Transformer 1:1 1kV 600R 100kHz Thru-Hole

Triad Magnetics

SP-67

Name: SP-67 Triad Magnetics
Brand: Triad Magnetics
SKU: SP-67

Active

Audio Transformer 1:1 1kV 600R 100kHz Thru-Hole

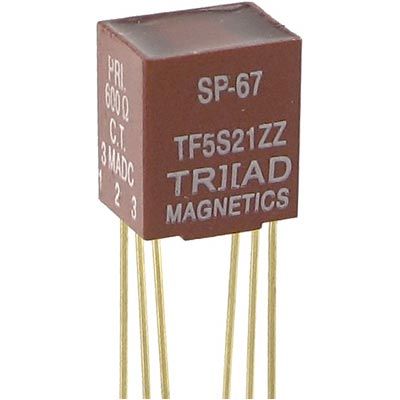

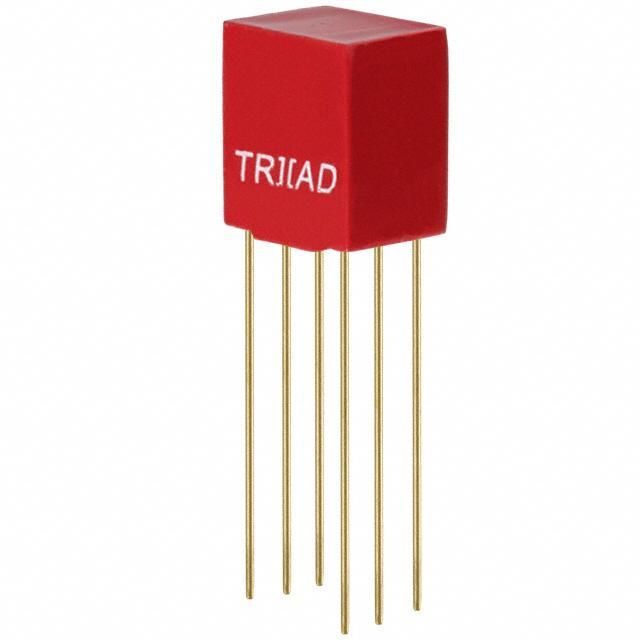

General Audio Transformer with a 1:1 turns ratio, designed for high reliability applications. Features a 600 Ohm primary and 600 Ohm secondary impedance, with 72 Ohm primary DCR and 92 Ohm secondary DCR. Operates across a frequency range of 0.3 to 100 kHz with a maximum output power of 50mW and a current rating of 3mA. Offers 1kV isolation voltage and a DC rated voltage of 150V. This through-hole, PCB mount component utilizes PC pin termination and is RoHS compliant.

Frequency100kHz

Current Rating3mA

MountingThrough Hole, PCB

Power50mW

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

General

Application(s)	HIGH RELIABILITY
Current Rating	3mA
DC Resistance (DCR)	72R
Frequency	100kHz
Height	0.465inch
Isolation Voltage	1kV
Lead Free	Lead Free
Length	0.41inch
Max DC Current	3mA
Max Frequency	100kHz
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Mount	Through Hole, PCB
Operating Frequency	0.3 to 100 kHz
Output Power	50mW
Package Quantity	1
Packaging	Bulk
Primary Impedance	600R
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Secondary Impedance	600R
Series	Red-Spec
Termination	PC Pin
Turns Ratio	1:1
DC Rated Voltage	150V
Weight	0.4oz
Width	0.31inch
