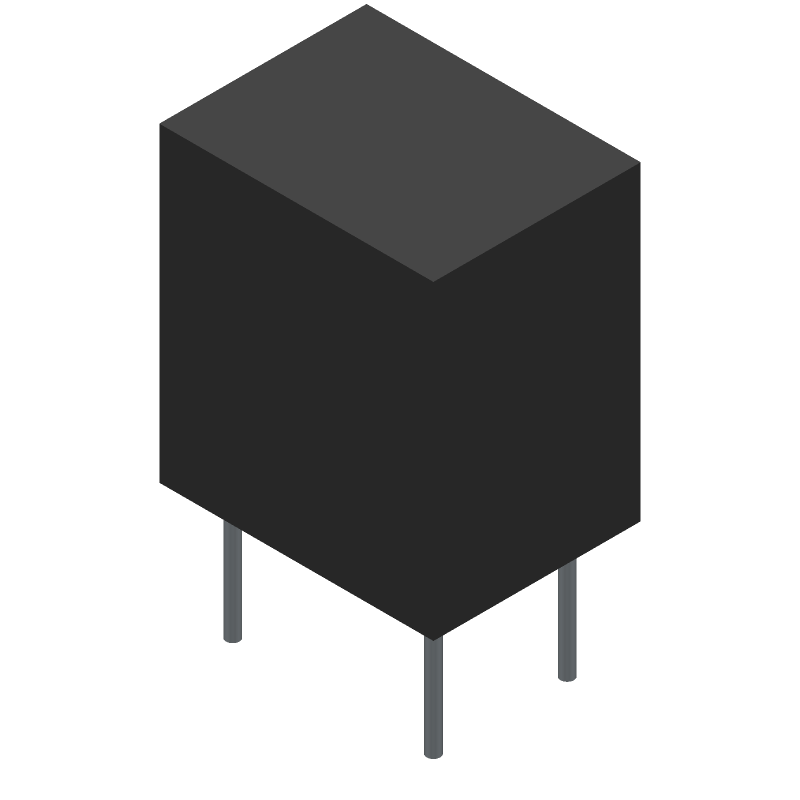

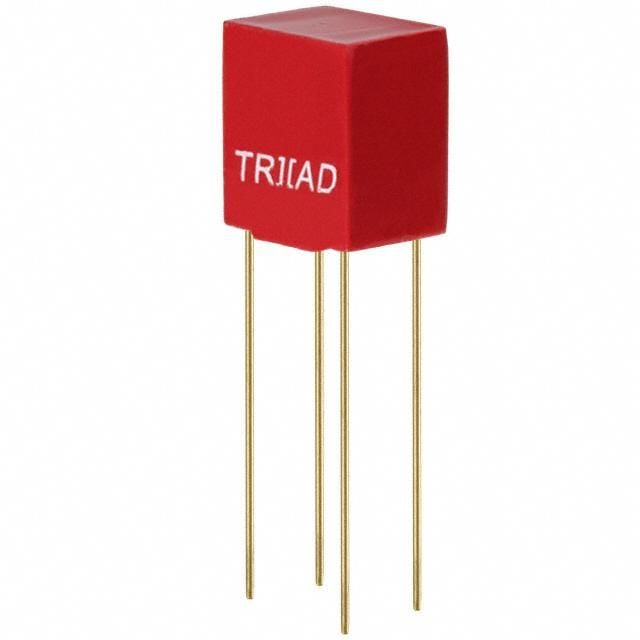

High-reliability general-purpose audio transformer designed for signal applications. Features a 1:1 turns ratio with 600-ohm primary and secondary impedance. Operates across a frequency range of 0.3 to 100 kHz, with a maximum frequency of 100 kHz. Offers 1kV isolation voltage and a 3mA current rating. Constructed with lead-free materials and RoHS compliance, this through-hole PCB mount component has a DC resistance of 72 ohms and a DC rated voltage of 150V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Triad Magnetics SP-70 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Application(s) | HIGH RELIABILITY |
| Current Rating | 3mA |
| DC Resistance (DCR) | 72R |
| Frequency | 100kHz |
| Height | 11.811mm |
| Isolation Voltage | 1kV |
| Lead Free | Lead Free |
| Length | 7.874mm |
| Max Frequency | 100kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Operating Frequency | 0.3 to 100 kHz |
| Package Quantity | 1 |
| Packaging | Bulk |
| Primary Impedance | 600R |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Secondary Impedance | 600R |
| Series | Red-Spec |
| Termination | PC Pin |
| Turns Ratio | 1:1 |
| DC Rated Voltage | 150V |
| Weight | 0.4oz |
| Width | 10.41mm |
| RoHS | Compliant |
