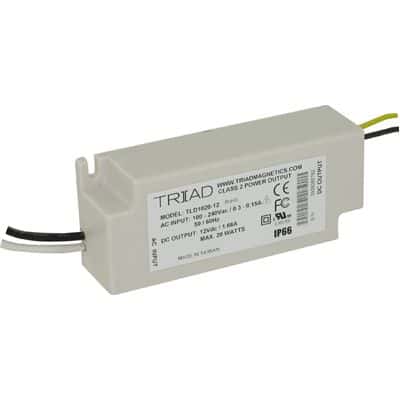

20W AC/DC LED Power Supply, featuring a single 12V output at 1.66A. This constant current/constant voltage power supply offers 84% efficiency and operates from 90V to 264V AC input. Protection features include Over Voltage Protection (OVP), Over Current Protection (OCP), and Short Circuit Protection (SCP). Designed for chassis or panel mounting with wire lead termination, it is rated IP66 and operates within a -30°C to 60°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Triad Magnetics TLD1020-12 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Triad Magnetics TLD1020-12 technical specifications.
| Package/Case | 100 |
| Current - Output 1 | 1.66A |
| Efficiency | 84% |
| Features | OVP, OCP, SCP |
| Lead Free | Lead Free |
| Max Input Voltage | 264V |
| Min Input Voltage | 90V |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 1.66A |
| Max Output Power | 40W |
| Max Output Voltage | 12V |
| Max Power Dissipation | 20W |
| Mount | Chassis Mount, Panel, Screw |
| Number of Outputs | 1 |
| Output Current | 1.66A |
| Output Power | 20W |
| Output Voltage | 12V |
| Package Quantity | 80 |
| Ratings | IP66 |
| Reach SVHC Compliant | Unknown |
| Series | TLD1020 |
| Termination | Wire Leads |
| Voltage - Output 1 | 12V |
| Weight | 0.265lb |
| RoHS | Compliant |
