Enclosed AC/DC LED driver delivering 24V at 1.05A constant current output, suitable for chassis or panel mounting. Features include over-voltage, over-current, and short-circuit protection, with an efficiency of 84%. Operates across a wide temperature range of -30°C to 60°C and boasts IP66 ingress protection. Approvals include CE and cULus.
Package100
MountingChassis Mount, Panel, Screw
Power25W
Quick Jump:
Technical Specifications
Triad Magnetics TLD1040-24-C1050 technical specifications.
General
| Approvals | CE, cULus |
| Package/Case | 100 |
| Current - Output 1 | 1.05A |
| Efficiency | 84% |
| Features | OVP, OCP, SCP |
| Height | 1.26inch |
| Lead Free | Lead Free |
| Length | 3.74inch |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 1.05A |
| Max Power Dissipation | 40W |
| Mount | Chassis Mount, Panel, Screw |
| Number of Outputs | 1 |
| Output Current | 1.05A |
| Output Power | 25W |
| Output Voltage | 24V |
| Package Quantity | 47 |
| Ratings | IP66 |
| Series | TLD1040 |
| Termination | Wire Leads |
| Voltage - Output 1 | 24V |
| Weight | 0.485lb |
| Width | 2.76inch |
Compliance
| RoHS | Compliant |
Datasheet
Triad Magnetics TLD1040-24-C1050 Datasheet
Download the complete datasheet for Triad Magnetics TLD1040-24-C1050 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

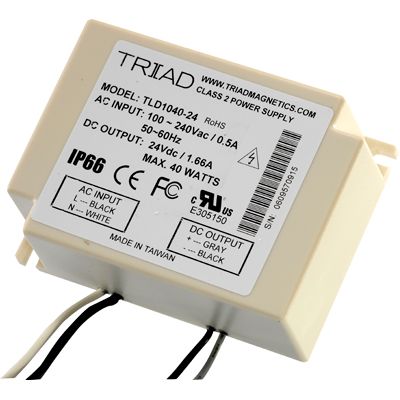

Product Images
