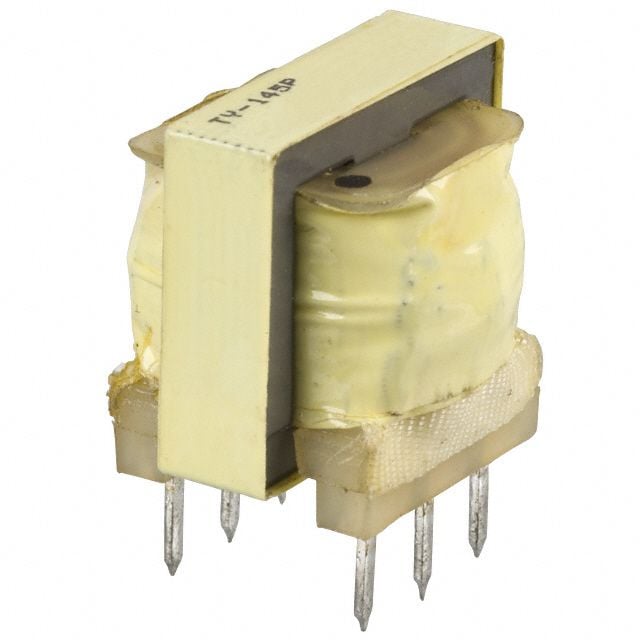

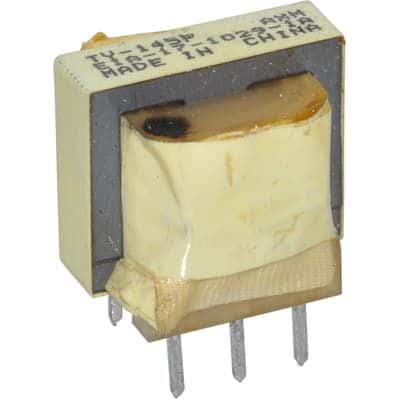

1:1 audio transformer with 1.5kV isolation voltage, designed for PCB mounting. Features 600 Ohm primary and secondary impedance, 44 Ohm primary DCR, and 58 Ohm secondary DCR. Operates across a frequency range of 0.2 to 15 kHz with a maximum output power of 100mW. This through-hole component offers a 1.5dB insertion loss and 26dB return loss, with a current rating of 15mA. RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Triad Magnetics TY-145P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Current Rating | 15mA |
| DC Resistance (DCR) | 44R |
| Depth | 15.1mm |
| Frequency | 15kHz |
| Height | 18.8mm |
| Insertion Loss | 1.5dB |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Lead/Base Style | PC Pin |
| Length | 20.6mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole, PCB |
| Operating Frequency | 0.2 to 15 kHz |
| Output Power | 100mW |
| Package Quantity | 126 |
| Packaging | Bulk |
| Primary Impedance | 600R |
| Reach SVHC Compliant | Unknown |
| Return Loss | 26dB |
| RoHS Compliant | Yes |
| Secondary Impedance | 600R |
| Series | TY |
| Termination | PC Pin |
| Turns Ratio | 1:1 |
| Weight | 0.032lb |
| Width | 17.8mm |
| RoHS | Compliant |
Download the complete datasheet for Triad Magnetics TY-145P to view detailed technical specifications.
