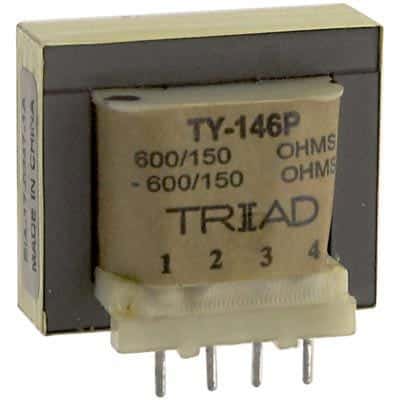

1:1 audio transformer featuring 1.5kVrms isolation voltage and a 0.2 to 15 kHz operating frequency range. Primary and secondary impedance are 600 Ohms, with primary DCR at 19 Ohms and secondary DCR at 22 Ohms. This through-hole component utilizes PC pin termination and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Triad Magnetics TY-146P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| DC Resistance (DCR) | 19R |
| Frequency | 15kHz |
| Height | 30.1mm |
| Insertion Loss | 1.5dB |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Length | 34.9mm |
| Max Frequency | 15kHz |
| Min Frequency | 200Hz |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole, PCB |
| Operating Frequency | 0.2 to 15 kHz |
| Package Quantity | 84 |
| Packaging | Bulk |
| Primary Impedance | 600R |
| Reach SVHC Compliant | Unknown |
| Return Loss | 26dB |
| RoHS Compliant | Yes |
| Secondary Impedance | 600R |
| Series | TY |
| Termination | PC Pin |
| Turns Ratio | 1:1 |
| Weight | 0.188lb |
| Width | 30.1mm |
| RoHS | Compliant |
Download the complete datasheet for Triad Magnetics TY-146P to view detailed technical specifications.
