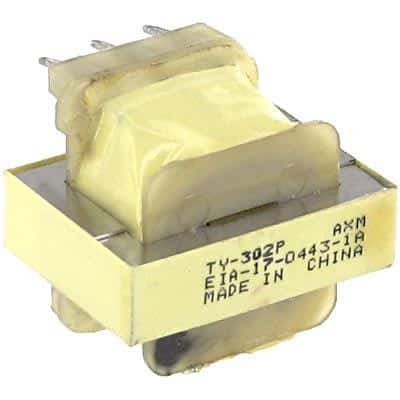

General telecom transformer featuring a 1:1.47 turns ratio and 600 Ohm primary and secondary impedance. Operates across a 0.2 to 4 kHz frequency range with a 3.5 kHz specified frequency. Offers 1.5kV isolation voltage and a maximum operating temperature of 85°C. Through-hole mounting for PCB applications, with PC pin termination. RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Triad Magnetics TY-302P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current Rating | 0mA |
| DC Resistance (DCR) | 34R |
| Frequency | 3.5kHz |
| Height | 0.87inch |
| Insertion Loss | 0.65dB |
| Insertion Loss | 0.8dB |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Length | 1.04inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole, Board, PCB |
| Operating Frequency | 0.2 to 4 kHz |
| Package Quantity | 126 |
| Packaging | Bulk |
| Primary Impedance | 600R |
| Reach SVHC Compliant | No |
| Return Loss | 32dB |
| RoHS Compliant | Yes |
| Secondary Impedance | 600R |
| Series | TY |
| Shielding | Unshielded |
| Termination | PC Pin |
| Turns Ratio | 1:1.47 |
| Weight | 0.832oz |
| Width | 0.96inch |
| RoHS | Compliant |
