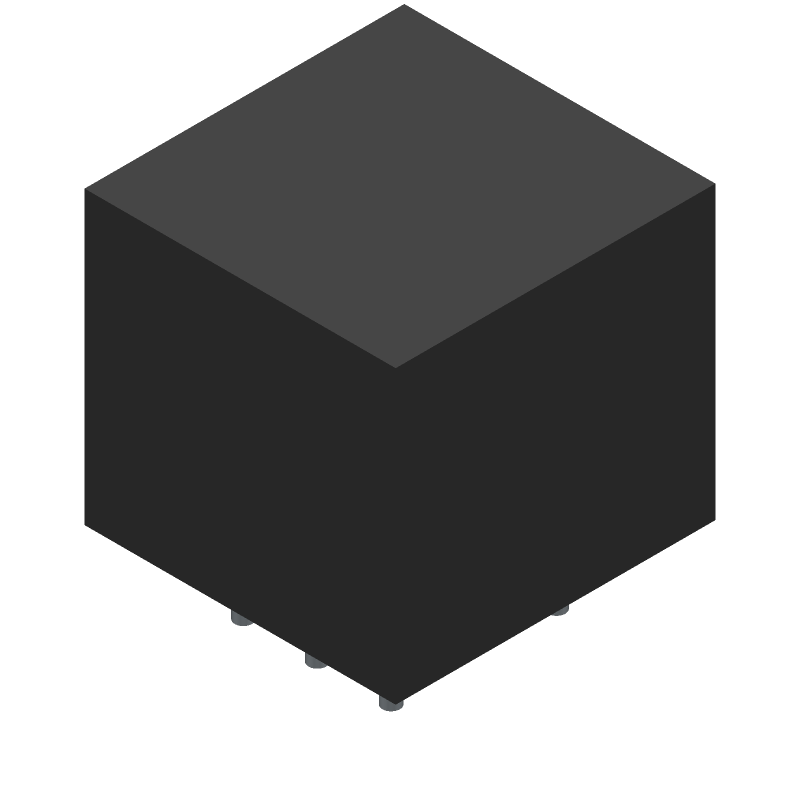

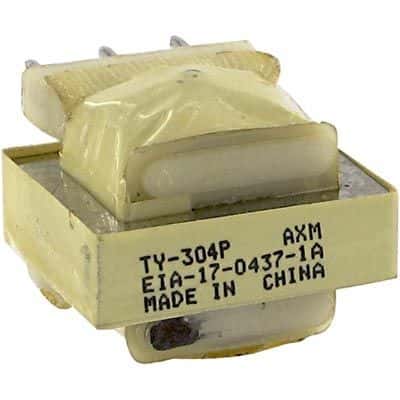

Audio transformer featuring a 1:1.05 turns ratio, 600 Ohm primary impedance, and 600 Ohm secondary impedance. Offers 1.5kV isolation voltage and operates within a 0.2 to 4 kHz frequency range, with a 3.5kHz specified frequency. Primary DCR is 42 Ohms, secondary DCR is 60 Ohms, and insertion loss is 1dB. Designed for PCB mounting with PC pin terminations and a through-hole package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Triad Magnetics TY-304P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current Rating | 0A |
| DC Resistance (DCR) | 42R |
| Frequency | 3.5kHz |
| Height | 18.8mm |
| Insertion Loss | 1dB |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Length | 20.6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole, PCB, Board |
| Operating Frequency | 0.2 to 4 kHz |
| Package Quantity | 126 |
| Packaging | Bulk |
| Primary Impedance | 600R |
| Reach SVHC Compliant | Unknown |
| Return Loss | 26dB |
| RoHS Compliant | Yes |
| Secondary Impedance | 600R |
| Series | TY |
| Termination | PC Pin |
| Turns Ratio | 1:1.05 |
| Weight | 0.832oz |
| Width | 18.2mm |
| RoHS | Compliant |
