TRIAD MAGNETICS

TY-307P

Datasheet

Audio Transformer 1.5kV 600R Pri/Sec DCR 43/61R Thru-Hole PC Pin

Triad Magnetics

TY-307P

Name: TY-307P Triad Magnetics
Brand: Triad Magnetics
SKU: TY-307P

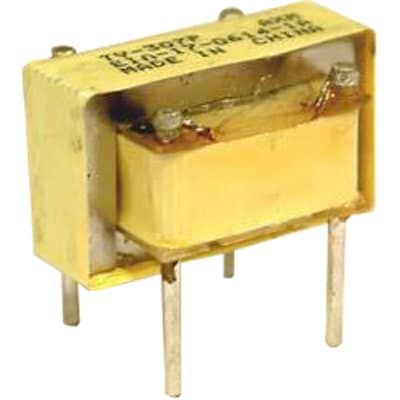

Audio Transformer 1.5kV 600R Pri/Sec DCR 43/61R Thru-Hole PC Pin

General audio transformer featuring 1.5kV isolation voltage and 600 Ohm primary/secondary impedance. Offers 43 Ohm primary DCR and 61 Ohm secondary DCR with a 1:1.07 turns ratio. Designed for through-hole PCB mounting with PC pin termination, operating from -20°C to 85°C. Insertion loss is 1dB, return loss is 26dB, and operating frequency ranges from 0.2 to 4 kHz.

Frequency0.2 to 4 kHz

Current Rating0A

MountingThrough Hole, PCB

Quick Jump:

Technical Specifications

Triad Magnetics TY-307P technical specifications.

General

Current Rating	0A
DC Resistance (DCR)	43R
Height	0.47inch
Insertion Loss	1dB
Isolation Voltage	1.5kV
Lead Free	Lead Free
Length	0.781inch
Max Operating Temperature	85°C
Min Operating Temperature	-20°C
Mount	Through Hole, PCB
Operating Frequency	0.2 to 4 kHz
Package Quantity	126
Packaging	Bulk
Primary Impedance	600R
Reach SVHC Compliant	Unknown
Return Loss	26dB
RoHS Compliant	Yes
Secondary Impedance	600R
Series	TY
Shielding	Unshielded
Termination	PC Pin
Turns Ratio	1:1.07
Weight	0.608oz
Width	0.67inch
