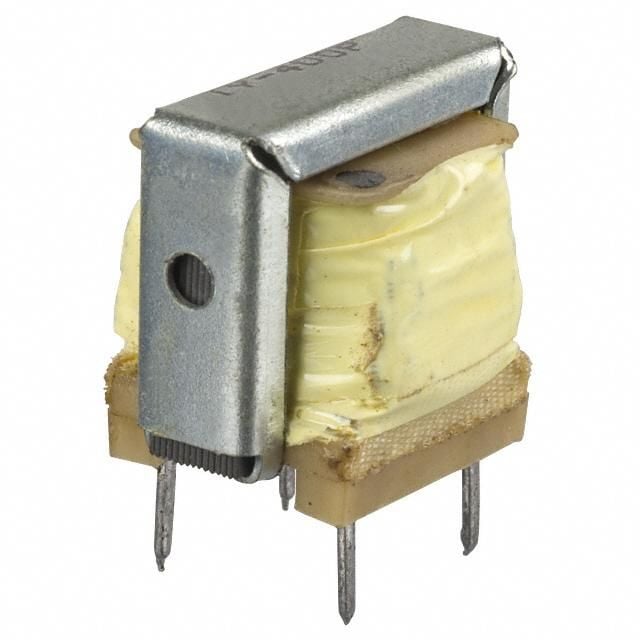

The TY-400P is a through-hole audio transformer with a current rating of 90mA and a DC resistance of 76.5 ohms. It measures 0.75inch in height and has a maximum operating temperature of 85°C and a minimum operating temperature of -20°C. The transformer is RoHS compliant and has a packaging of bulk with 126 units per package. It operates at frequencies between 0.2 to 4 kHz and has a return loss of 15dB.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Triad Magnetics TY-400P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current Rating | 90mA |
| DC Resistance (DCR) | 76.5R |
| Height | 0.75inch |
| Insertion Loss | 1.75dB |
| Lead Free | Lead Free |
| Length | 0.82inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole, Board |
| Operating Frequency | 0.2 to 4 kHz |
| Package Quantity | 126 |
| Packaging | Bulk |
| Primary Impedance | 600R |
| Reach SVHC Compliant | Unknown |
| Return Loss | 15dB |
| RoHS Compliant | Yes |
| Secondary Impedance | 600R |
| Series | TY |
| Shielding | Unshielded |
| Termination | PC Pin |
| Turns Ratio | 1:1.07 |
| Weight | 0.608oz |
| Width | 0.715inch |
| RoHS | Compliant |
