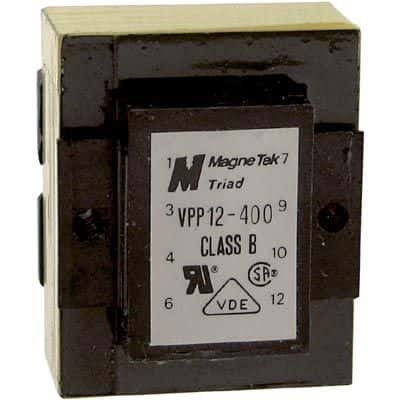

General purpose power transformer featuring 4000VAC isolation, 5VA power rating, and dual primary/secondary windings. Designed for through-hole PCB mounting with 8 PC pin terminals, it operates from a 115V supply and provides a 12.6V output. Key specifications include 800mA output current, 400mA maximum output current, and compliance with UL, CSA, and VDE standards. This lead-free, RoHS-compliant component is suitable for various electronic applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Triad Magnetics VPP12-400 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, VDE |
| Current Rating | 800mA |
| Height | 1.375inch |
| Height - Seated (Max) | 34.93mm |
| Lead Free | Lead Free |
| Length | 41.28mm |
| Max Output Current | 400mA |
| Mount | Through Hole, PCB |
| Operating Supply Voltage | 115V |
| Output Current | 800mA |
| Output Voltage | 12.6V |
| Package Quantity | 20 |
| Packaging | Bulk |
| Primary Winding(s) | Dual |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Secondary Current | 800mA |
| Secondary Winding(s) | Dual |
| Series | PC Mount: World Series™ |
| Termination | PC Pin |
| Weight | 0.37lb |
| Width | 33.32mm |
| RoHS | Compliant |
