TRIAD MAGNETICS

VPP16-310

Datasheet

16V Dual Output Power Transformer, 5VA, 620mA, PCB Mount

Triad Magnetics

VPP16-310

Name: VPP16-310 Triad Magnetics
Brand: Triad Magnetics
SKU: VPP16-310

16V Dual Output Power Transformer, 5VA, 620mA, PCB Mount

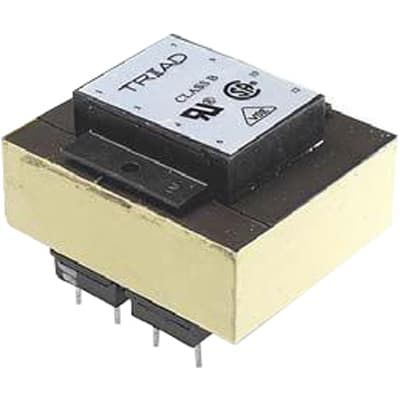

Split bobbin power transformer, 5VA, featuring dual primary and dual secondary windings. Output voltage is 16V with a maximum output current of 310mA, and an overall output current of 620mA. Designed for through-hole PCB mounting with PC pin termination. Approvals include UL, CSA, and VDE, with lead-free and RoHS compliant construction. Dimensions are 41.28mm length, 33.32mm width, and 34.93mm seated height.

Current Rating620mA

MountingThrough Hole, PCB

Quick Jump:

Technical Specifications

Triad Magnetics VPP16-310 technical specifications.

General

Approvals	UL, CSA, VDE
Current Rating	620mA
Height	1.375inch
Height - Seated (Max)	34.93mm
Lead Free	Lead Free
Length	41.28mm
Max Output Current	310mA
Mount	Through Hole, PCB
Output Current	620mA
Output Voltage	16V
Package Quantity	20
Packaging	Tray
Primary Winding(s)	Dual
RoHS Compliant	Yes
Secondary Winding(s)	Dual
Series	PC Mount: World Series™
Termination	PC Pin
Weight	0.37lb
Width	33.32mm
