24V dual secondary power transformer, 2.5VA rated, with 4000VAC isolation. Features 8-terminal PC pin termination for through-hole PCB mounting. Offers 200mA output current and 100mA maximum output current. Approvals include UL, CSA, and VDE. Lead-free and RoHS compliant.
Current Rating200mA
MountingThrough Hole, PCB, Board
Quick Jump:
Technical Specifications
Triad Magnetics VPP24-100 technical specifications.
General
| Approvals | UL, CSA, VDE |
| Current Rating | 200mA |
| Height | 1.375inch |
| Height - Seated (Max) | 28.58mm |
| Lead Free | Lead Free |
| Length | 41.28mm |
| Max Output Current | 100mA |
| Mount | Through Hole, PCB, Board |
| Output Current | 200mA |
| Output Voltage | 24V |
| Package Quantity | 20 |
| Packaging | Box |
| Primary Winding(s) | Dual |
| RoHS Compliant | Yes |
| Secondary Winding(s) | Dual |
| Series | PC Mount: World Series™ |
| Termination | PC Pin |
| Weight | 0.25lb |
| Width | 33.32mm |
Compliance
| RoHS | Compliant |
Datasheet
Triad Magnetics VPP24-100 Datasheet
Download the complete datasheet for Triad Magnetics VPP24-100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

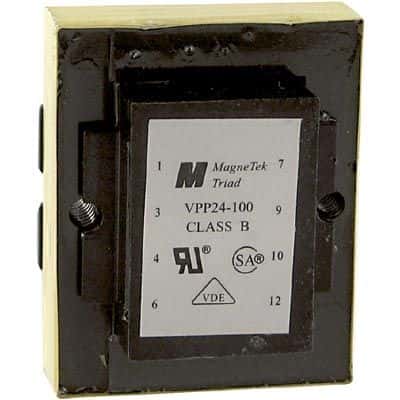

Product Images
