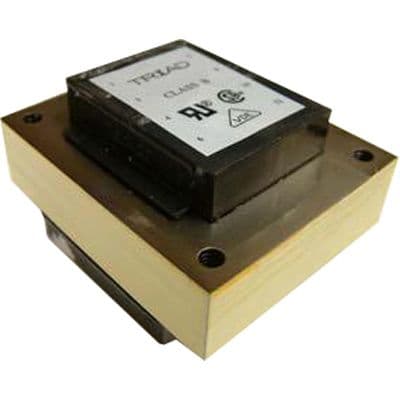

Split bobbin power transformer, 56VA, featuring dual primary and dual secondary windings. Delivers 24V output voltage with a 4.66A output current. Designed for through-hole PCB mounting with PC pin termination. Approvals include UL, CSA, and VDE, with lead-free and RoHS compliant construction.
Current Rating4.66A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Triad Magnetics VPP24-2330 technical specifications.
General
| Approvals | UL, CSA, VDE |
| Current Rating | 4.66A |
| Height | 1.812inch |
| Height - Seated (Max) | 46.02mm |
| Lead Free | Lead Free |
| Length | 76.2mm |
| Max Output Current | 2.33A |
| Mount | Through Hole, PCB |
| Output Current | 4.66A |
| Output Voltage | 24V |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Primary Winding(s) | Dual |
| RoHS Compliant | Yes |
| Secondary Winding(s) | Dual |
| Series | PC Mount: World Series™ |
| Termination | PC Pin |
| Weight | 1.7lb |
| Width | 63.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Triad Magnetics VPP24-2330 Datasheet
Download the complete datasheet for Triad Magnetics VPP24-2330 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
