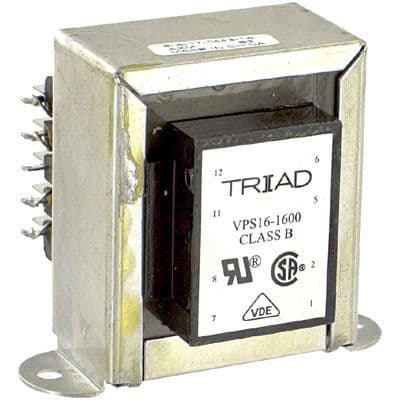

This 8V power transformer from Triad Magnetics features a dual primary and secondary winding configuration, with a maximum output current of 1.6A. It is designed for use in chassis mount applications and is compliant with RoHS regulations. The transformer is available in bulk packaging and has a weight of 1.3lb. It is approved by UL, CSA, and VDE, and is suitable for use in a variety of applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Triad Magnetics VPS16-1600 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, VDE |
| Current Rating | 3.2A |
| Height - Seated (Max) | 58.67mm |
| Lead Free | Lead Free |
| Length | 50.8mm |
| Max Output Current | 1.6A |
| Mount | Chassis Mount, Panel, Flanges |
| Output Voltage | 8V |
| Package Quantity | 8 |
| Packaging | Bulk |
| Primary Winding(s) | Dual |
| RoHS Compliant | Yes |
| Secondary Winding(s) | Dual |
| Series | Chassis Mount: World Series™ |
| Termination | Quick Connect |
| Weight | 1.3lb |
| Width | 33.27mm |
| RoHS | Compliant |
Download the complete datasheet for Triad Magnetics VPS16-1600 to view detailed technical specifications.
