Current Rating380mA
MountingChassis Mount, Panel, Flanges
Quick Jump:
Technical Specifications
Triad Magnetics VPS230-190 technical specifications.
General
| Approvals | UL, CSA, VDE |
| Current Rating | 380mA |
| Height - Seated (Max) | 68.33mm |
| Lead Free | Lead Free |
| Length | 58.67mm |
| Max Output Current | 190mA |
| Mount | Chassis Mount, Panel, Flanges |
| Output Voltage | 115V |
| Package Quantity | 8 |
| Packaging | Bulk |
| Primary Winding(s) | Dual |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Secondary Winding(s) | Dual |
| Series | Chassis Mount: World Series™ |
| Termination | Quick Connect |
| Weight | 1.6lb |
| Width | 50.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Triad Magnetics VPS230-190 Datasheet
Download the complete datasheet for Triad Magnetics VPS230-190 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

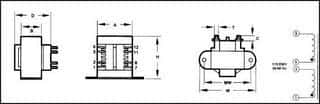

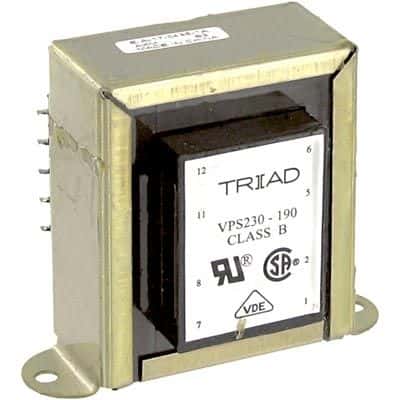

Product Images
