Technical Specifications
Triad Magnetics VPT24-1040 technical specifications.
General
| Height | 31.5mm |
| Height - Seated (Max) | 34mm |
| Lead Free | Lead Free |
| Max Output Current | 1.04A |
| Mount | Chassis Mount, Panel |
| Package Quantity | 40 |
| Primary Winding(s) | Dual |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Secondary Current | 2.08A |
| Secondary Winding(s) | Dual |
| Series | Chassis Mount: World Series™ |
| Termination | Wire Leads |
| Weight | 0.882lb |
| Width | 32mm |
Compliance
| RoHS | Compliant |
Datasheet
Triad Magnetics VPT24-1040 Datasheet
Download the complete datasheet for Triad Magnetics VPT24-1040 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

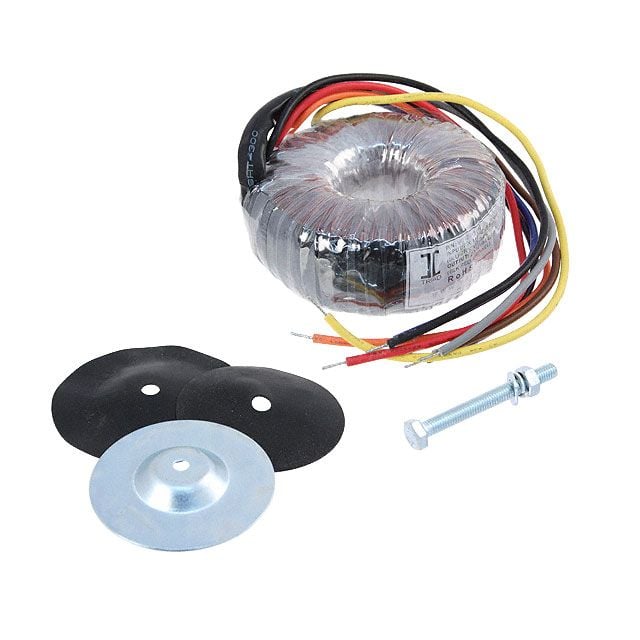

Product Images
