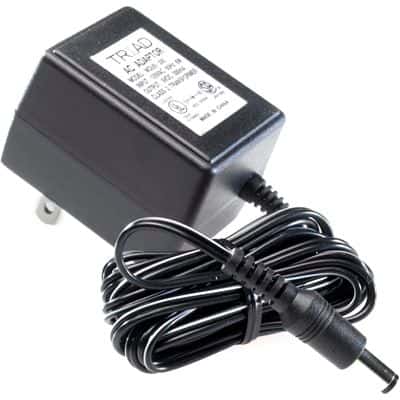

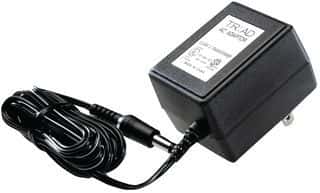

External AC/DC power supply, 24V nominal output voltage, 200mA maximum output current, and 4.8W output power. Features a single output with a barrel plug connector (2.1mm I.D. x 5.5mm O.D. x 11.0mm). Operates within a temperature range of -10°C to 40°C, with a maximum input voltage of 120V. UL approved and RoHS compliant, this wall-mount adapter includes a 72-inch cord.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Triad Magnetics WDU24-200 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Triad Magnetics WDU24-200 technical specifications.
| Approvals | UL |
| Package/Case | 200 |
| Cord Length | 72inch |
| Current - Output 1 | 200mA |
| Height | 1.54inch |
| Lead Free | Lead Free |
| Length | 2.36inch |
| Max Input Voltage | 120V |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 200mA |
| Max Output Power | 9W |
| Max Power Dissipation | 4.8W |
| Mount | Wall |
| Nominal Output Voltage | 24V |
| Number of Outputs | 1 |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm |
| Output Current | 700mA |
| Output Power | 4.8W |
| Output Voltage | 24V |
| Package Quantity | 20 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | WDU |
| Voltage - Output 1 | 24V |
| Width | 1.69inch |
| RoHS | Compliant |
