Chassis mount stepper motor driver with 2.8A output current and a 9-51V load range. Features USB, CAN, and RS-485 interfaces for versatile connectivity. Operates within a temperature range of 0°C to 40°C.
MountingChassis Mount
Quick Jump:
Technical Specifications
Trinamic TMCM-1160-TMCL technical specifications.
General
| Interface | USB, CAN, RS-485 |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | 0°C |
| Motor Type | Stepper |
| Mount | Chassis Mount |
| Output Current | 2.8A |
| Series | TMCM |
Compliance
| RoHS | Compliant |
Datasheet
Trinamic TMCM-1160-TMCL Datasheet
Download the complete datasheet for Trinamic TMCM-1160-TMCL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

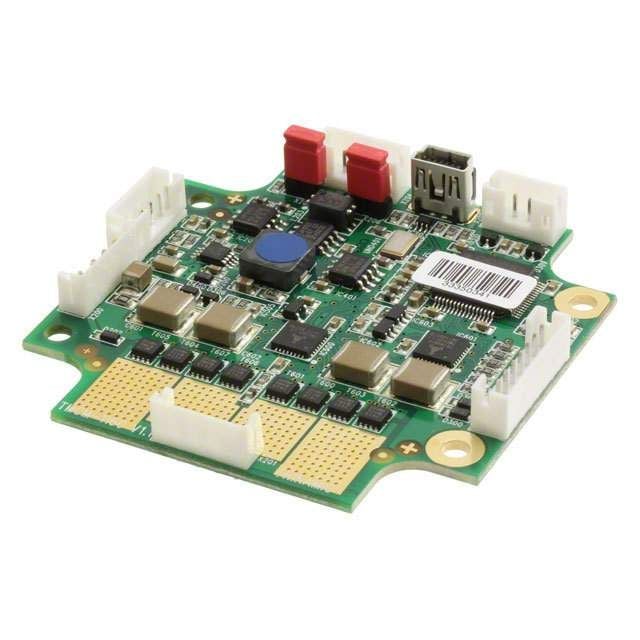

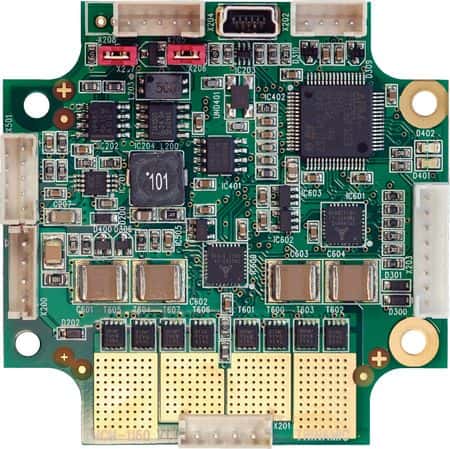

Product Images
