Chassis mount enclosed AC/DC power supply featuring stepper motor control. Supports RS-232, USB, and RS-485 interfaces for versatile connectivity. Delivers up to 2.8A output current for stepper motors. Operates reliably across a wide temperature range from -35°C to 50°C.
MountingChassis Mount
Quick Jump:
Technical Specifications
Trinamic TMCM-1161 technical specifications.
General
| Interface | RS-232, USB, RS-485 |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -35°C |
| Motor Type | Stepper |
| Mount | Chassis Mount |
| Output Current | 2.8A |
| Packaging | Bulk |
| Series | TMCM |
Compliance
| RoHS | Compliant |
Datasheet
Trinamic TMCM-1161 Datasheet
Download the complete datasheet for Trinamic TMCM-1161 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

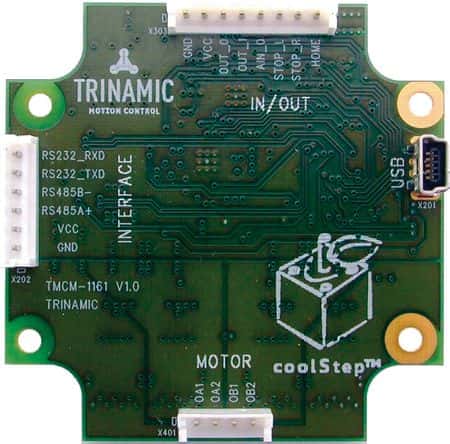

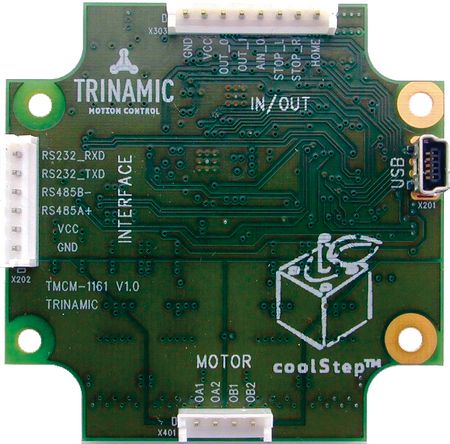

Product Images
