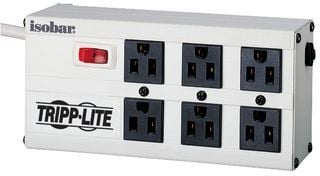

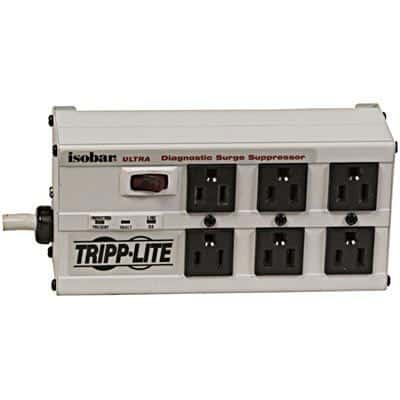

This 6-outlet power strip offers robust surge protection with a 140V clamping voltage and 3330 joules of energy absorption. Featuring a durable aluminum housing, it provides 6 AC outlets and a 6-foot cord for flexible placement. Rated for 120V AC and 15A, it includes a 12A max current rating and a 97kA max surge current capacity. Overload protection is managed by an integrated circuit breaker, and the unit boasts a fast 1ns response time. Mountable via wall or plug-in, this RoHS compliant power strip is designed for reliable power distribution.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Tripp Lite ISOBAR6 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Tripp Lite ISOBAR6 technical specifications.
| AC Outlets | 6 |
| Approvals | UL, CSA |
| Body Material | Aluminium |
| Package/Case | Aluminum |
| Clamping Voltage | 140V |
| Cord Length | 6foot |
| Current Rating | 15A |
| Energy | 3330J |
| Frequency | 5.06kHz |
| Height | 63.5mm |
| Lead Free | Lead Free |
| Length | 7inch |
| Max Current Rating | 12A |
| Max Surge Current | 97kA |
| Mount | Wall, Plug-In |
| Output Current | 12A |
| Output Voltage | 120V |
| Overload Protection | Circuit Breaker |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Response Time | 1ns |
| RoHS Compliant | Yes |
| Series | ISOBAR® |
| Voltage Rating (AC) | 120V |
| DC Rated Voltage | 120V |
| Weight | 2.4lb |
| Width | 178mm |
| RoHS | Compliant |
Download the complete datasheet for Tripp Lite ISOBAR6 to view detailed technical specifications.
