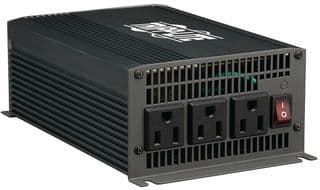

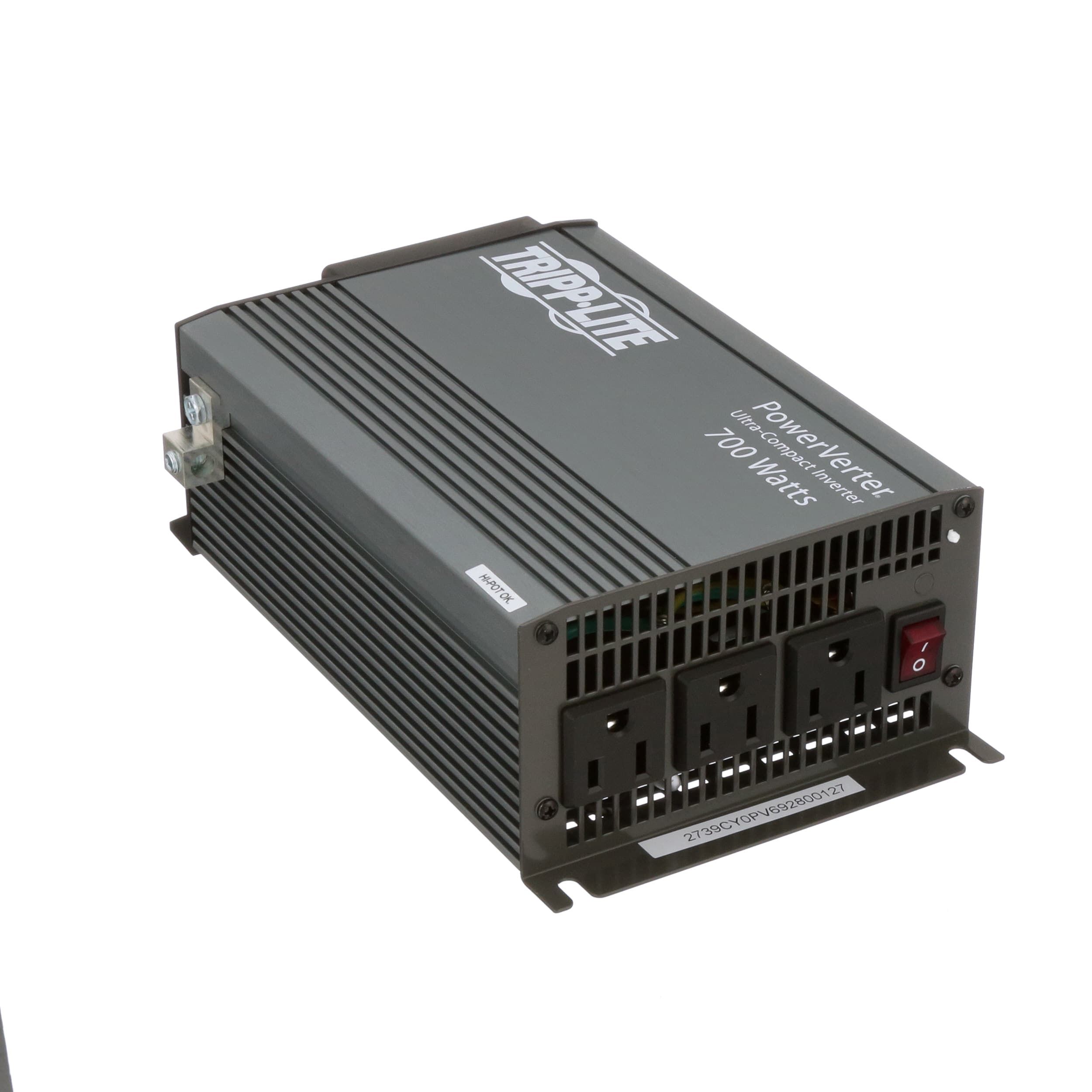

The PowerVerter PV700HF is a 700W modified sine wave DC/AC inverter from Tripp Lite. It operates at a nominal input voltage of 12V and provides three AC outlets. The inverter is designed for use in a variety of applications, including those requiring a 60Hz frequency. It is available in a single unit package and is suitable for mounting on a chassis, panel, or via screws. The PowerVerter PV700HF is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Tripp Lite PV700HF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Tripp Lite PV700HF technical specifications.
| AC Outlets | 3 |
| Frequency | 60Hz |
| Height | 69.85mm |
| Length | 127mm |
| Max Input Voltage (DC) | 12V |
| Mount | Chassis, Panel, Screw |
| Nominal Input Voltage | 12V |
| Number of Outputs | 3 |
| Output Power | 700W |
| Output Voltage | 120V |
| Package Quantity | 1 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | PowerVerter® |
| Size | 69.9mm |
| Weight | 2.8lb |
| Width | 207.518mm |
| RoHS | Compliant |
Download the complete datasheet for Tripp Lite PV700HF to view detailed technical specifications.
