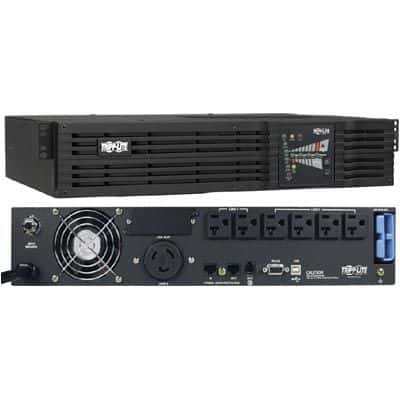

Online UPS, 2200VA/1600W, 110V/120V nominal input, 120V output voltage, 1-phase output. Features NEMA 5-20R (6) and NEMA L5-20R (1) output connectors. Offers 94% efficiency and a 3-foot cord. Rackmount design with serial and USB interface. Operating temperature range of 0°C to 40°C. UL and CSA approved.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Tripp Lite SU2200RTXL2UA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Tripp Lite SU2200RTXL2UA technical specifications.
| Approvals | UL, CSA |
| Package/Case | 482 |
| Color | Black |
| Cord Length | 3foot |
| Efficiency | 94% |
| Height | 88.9mm |
| Housing Color | Black |
| Interface | Serial, USB |
| Lead Free | Contains Lead |
| Length | 483mm |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | 0°C |
| Mount | Rack |
| Nominal Input Voltage (AC) | 110V |
| Number of Output Phases | 1 |
| Output Connector | NEMA 5-20R (6), NEMA L5-20R (1) |
| Output Voltage | 120V |
| Series | Smart Online™ |
| Voltage - Output 1 | 120V |
| Weight | 55lb |
| Width | 445mm |
| RoHS | Compliant |
Download the complete datasheet for Tripp Lite SU2200RTXL2UA to view detailed technical specifications.
