Cermet trimmer potentiometer, 20kΩ resistance with 10% tolerance, rated for 0.25W power dissipation and 200V DC. Features 12 turns for precise adjustment, a linear taper, and through-hole mounting with pin terminations. Operates across a wide temperature range from -65°C to 150°C. This square-shaped component measures 6.35mm in length and 4.19mm in depth, with RoHS compliance.
Resistance20kR
Voltage Rating200V
MountingThrough Hole
Quick Jump:
Technical Specifications
TT 64WR20KLF technical specifications.
General
| Depth | 4.19mm |
| Lead Free | Lead Free |
| Length | 6.35mm |
| Max Operating Temperature | 150°C |
| Military Standard | Not |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 250mW |
| Mount | Through Hole |
| Number of Turns | 12 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 20kR |
| Resistance Tolerance | 10% |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | 64 |
| Taper | Linear |
| Technology | CERMET |
| Termination | Pin |
| Tolerance | 10% |
| Type | Potentiometer |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
| Weight | 0.4g |
Compliance
| RoHS | Compliant |
Datasheet
TT 64WR20KLF Datasheet
Download the complete datasheet for TT 64WR20KLF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

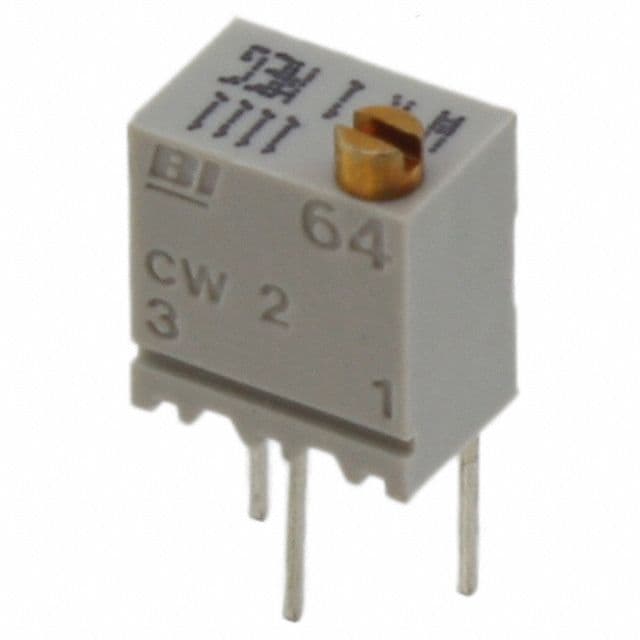

Product Images
