Cermet trimmer potentiometer, 10kΩ resistance with 10% tolerance, rated at 0.5W (500mW) and 200V DC. Features 20 turns for precise adjustment, through-hole mounting, and a square, 3-pin configuration. Operates across a temperature range of -55°C to 125°C. RoHS compliant and lead-free.
Resistance10kR
MountingThrough Hole
Quick Jump:
Technical Specifications
TT 67WR10KLF technical specifications.
General
| Depth | 4.95mm |
| Height | 0.409inch |
| Lead Free | Lead Free |
| Length | 9.53mm |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 500mW |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Turns | 20 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 10kR |
| Resistance Tolerance | 10% |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | 67 |
| Shape | Square |
| Technology | CERMET |
| Termination | Pin |
| Tolerance | 10% |
| Type | Potentiometer |
| DC Rated Voltage | 200V |
| Weight | 0.04oz |
Compliance
| RoHS | Compliant |
Datasheet
TT 67WR10KLF Datasheet
Download the complete datasheet for TT 67WR10KLF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

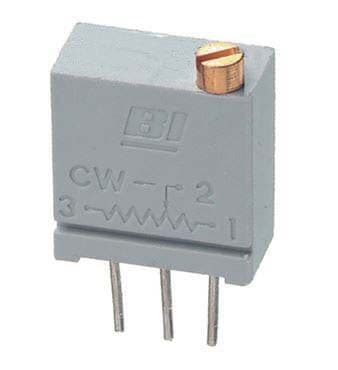

Product Images
