Cermet trimmer potentiometer, 10kΩ resistance with 10% tolerance, 0.5W power dissipation, and a 200V DC rating. Features a square, through-hole mount design with 3 pins and 20 turns. Operates across a -55°C to 125°C temperature range. RoHS compliant and lead-free.
Resistance10kR
Voltage Rating200V
MountingThrough Hole
Quick Jump:
Technical Specifications
TT 67XR10KLF technical specifications.
General
| Depth | 4.95mm |
| Height | 0.409inch |
| Lead Free | Lead Free |
| Length | 11.11mm |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 500mW |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Turns | 20 |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 10kR |
| Resistance Tolerance | 10% |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | 67 |
| Shape | Square |
| Taper | Linear |
| Technology | CERMET |
| Termination | Pin |
| Tolerance | 10% |
| Type | Potentiometer |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
| Weight | 0.04oz |
| Width | 4.95mm |
Compliance
| RoHS | Compliant |
Datasheet
TT 67XR10KLF Datasheet
Download the complete datasheet for TT 67XR10KLF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

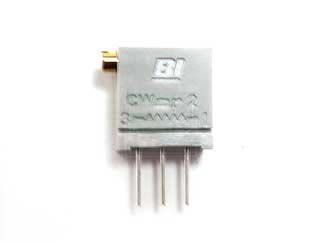

Product Images
