Technical Specifications
TT 67XR5KLF technical specifications.
General
| Depth | 4.95mm |
| Height | 0.409inch |
| Lead Free | Lead Free |
| Length | 11.11mm |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 500mW |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Turns | 20 |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Resistance | 5kR |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | 67 |
| Technology | CERMET |
| Termination | Pin |
| Tolerance | 10% |
| Voltage Rating | 200V |
| Weight | 1.1g |
Compliance
| RoHS | Compliant |
Datasheet
TT 67XR5KLF Datasheet
Download the complete datasheet for TT 67XR5KLF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

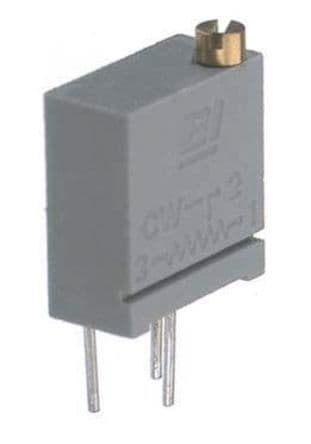

Product Images
