Cermet trimmer potentiometer, 20kΩ resistance with 10% tolerance, featuring 12 turns and 0.25W power dissipation. Surface mountable with SMD/SMT termination, this general-purpose variable resistor operates from -65°C to 150°C. Dimensions include 6.35mm length, 6.36mm depth, and 0.295-inch height. RoHS compliant and lead-free.
Resistance20kR
MountingSurface Mount
Quick Jump:
Technical Specifications
TT 84WR20KLF technical specifications.
General
| Depth | 6.36mm |
| Height | 0.295inch |
| Lead Free | Lead Free |
| Length | 6.35mm |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 250mW |
| Military Standard | Not |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Turns | 12 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 20kR |
| Resistance Tolerance | 10% |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | 84 |
| Technology | CERMET |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Type | Potentiometer |
| Weight | 0.4g |
Compliance
| RoHS | Compliant |
Datasheet
TT 84WR20KLF Datasheet
Download the complete datasheet for TT 84WR20KLF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

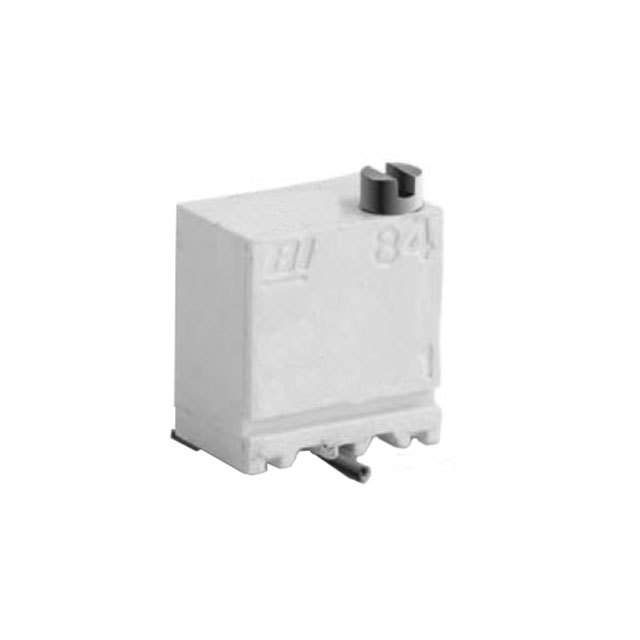

Product Images
