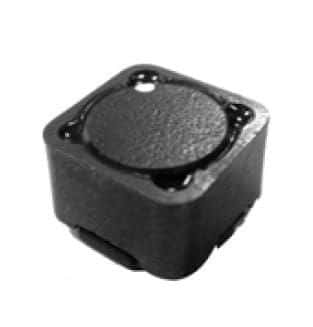

Surface mount shielded wirewound power inductor with 680µH inductance and 20% tolerance. Features a series inductance of 2.685mH and parallel DCR of 2.58 Ohms, with a series DCR of 10.3 Ohms. Rated for 330mA RMS current and 380mA DC current, operating from -40°C to 125°C. Packaged in tape and reel.
PackageNonstandard
Current166mA
Current Rating330mA
MountingSurface Mount
Quick Jump:
Technical Specifications
TT HM78D-755681MLFTR technical specifications.
General
| Package/Case | Nonstandard |
| Current | 166mA |
| Current Rating | 330mA |
| DC Resistance (DCR) | 5.15R |
| DC Resistance (DCR) - Parallel | 2.58R |
| DC Resistance (DCR) - Series | 10.3R |
| Height | 0.189inch |
| Inductance | 680uH |
| Inductance - Parallel | 680uH |
| Inductance - Series | 2.685mH |
| Inductance Tolerance | 20% |
| Length | 0.303inch |
| Max DC Current | 380mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Coils | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 330mA |
| RoHS Compliant | Yes |
| Series | HM78D |
| Series Resistance | 10.3R |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Width | 7.7mm |
