9-resistor network array with 4.7kR resistance and 2% tolerance, featuring a bussed circuit type and thick film technology. This component is housed in a 10-pin SIP package for through-hole mounting, with a terminal pitch of 2.54mm. It offers a power dissipation of 125mW per element and a maximum working voltage of 100V, operating across a temperature range of -55°C to 125°C. The array is RoHS compliant and lead-free.
PackageSIP
Resistance4.7kR
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
TT L101S472LF technical specifications.
General
| Package/Case | SIP |
| Circuit Type | Bussed |
| Depth | 2.5mm |
| Height | 4.95mm |
| Lead Free | Lead Free |
| Length | 25.4mm |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 9 |
| Number of Resistors | 9 |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Dissipation | 125mW |
| Power Per Element | 125mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 4.7kR |
| Resistance Tolerance | 2% |
| RoHS Compliant | Yes |
| Series | L, BI |
| Technology | THICK FILM |
| Terminal Pitch | 2.54mm |
| Termination | Pin |
| Tolerance | 2% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| Width | 2.41mm |
| Working Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
TT L101S472LF Datasheet
Download the complete datasheet for TT L101S472LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

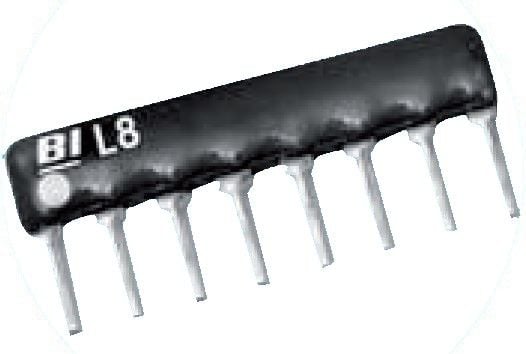

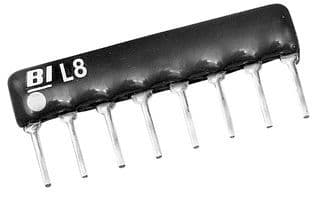

Product Images
