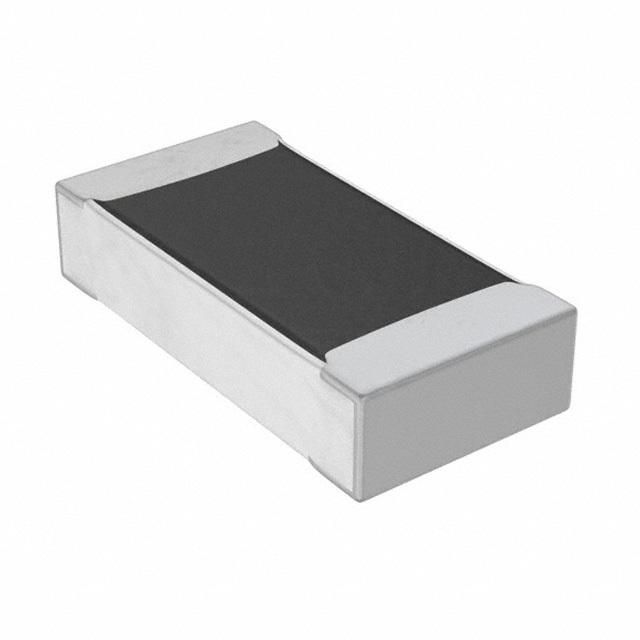

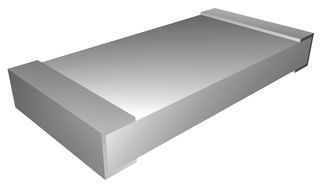

The LR2512LF-01-R033-F is a 2W, 33mR, 1% thick film chip resistor from TT, packaged in a 2512 case with SMD/SMT terminations. It operates over a temperature range of -55°C to 150°C and is compliant with RoHS regulations. The resistor is lead free and moisture resistant, making it suitable for use in a variety of applications.
Sign in to ask questions about the TT LRC-LR2512LF-01-R033-F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TT LRC-LR2512LF-01-R033-F technical specifications.
| Case Code (Imperial) | 2512 |
| Case Code (Metric) | 6432 |
| Package/Case | 2512 |
| Features | Moisture Resistant |
| Height | 0.033inch |
| Lead Free | Lead Free |
| Length | 0.256inch |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 2W |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 33mR |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | LR |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Width | 0.128inch |
| RoHS | Compliant |
