NPN phototransistor chip for optical sensing applications. Features a 25V collector-emitter breakdown voltage and a maximum collector current of 50mA. Operates across a wide temperature range from -65°C to 125°C with a power dissipation of 50mW. This surface mount component offers a 35° viewing angle and is packaged in bulk.
PackageMetal
MountingSurface Mount, Snap in
PolarityNPN
Power50mW
Quick Jump:
Technical Specifications
TT OP644SL technical specifications.
General
| Package/Case | Metal |
| Collector Emitter Breakdown Voltage | 25V |
| Collector Emitter Voltage (VCEO) | 25V |
| Fall Time | 15000ns |
| Height | 2.92mm |
| Lead Free | Lead Free |
| Length | 2.34mm |
| Max Collector Current | 50mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 50mW |
| Mount | Surface Mount, Snap in |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Orientation | Top View |
| Packaging | Bulk |
| Polarity | NPN |
| Power Consumption | 50mW |
| Power Dissipation | 50mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Viewing Angle | 35° |
| Wavelength | 890nm |
| Width | 1.57mm |
Compliance
| RoHS | Compliant |
Datasheet
TT OP644SL Datasheet
Download the complete datasheet for TT OP644SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

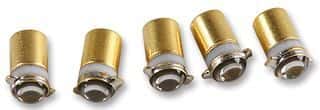

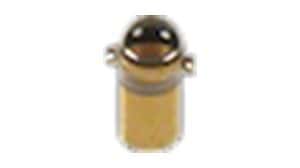

Product Images
