PIN Photodiode chip with 935nm wavelength, featuring a 5ns response time and 5ns fall time. This through-hole mount component operates with a 1mA forward current and a maximum reverse voltage of 60V. Encased in a radial package with a clear lens, it offers a 100°C maximum operating temperature and is RoHS compliant.
PackageRadial
MountingThrough Hole
Power100mW
Quick Jump:
Technical Specifications
TT OP950 technical specifications.
General
| Package/Case | Radial |
| Diode Type | PIN |
| Fall Time | 5ns |
| Forward Current | 1mA |
| Height | 5.84mm |
| Lead Free | Lead Free |
| Lead Length | 12.7mm |
| Lens Style | Clear |
| Max Input Current | 1mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Reverse Voltage (DC) | 60V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Output Voltage | 60V |
| Package Quantity | 100 |
| Packaging | Bulk |
| Power Dissipation | 100mW |
| Primary Type | LATERAL |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 5ns |
| Reverse Voltage | 60V |
| RoHS Compliant | Yes |
| DC Rated Voltage | 60V |
| Wavelength | 935nm |
Compliance
| RoHS | Compliant |
Datasheet
TT OP950 Datasheet
Download the complete datasheet for TT OP950 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

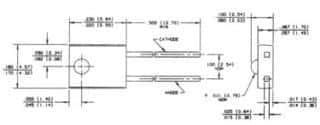

Product Images
