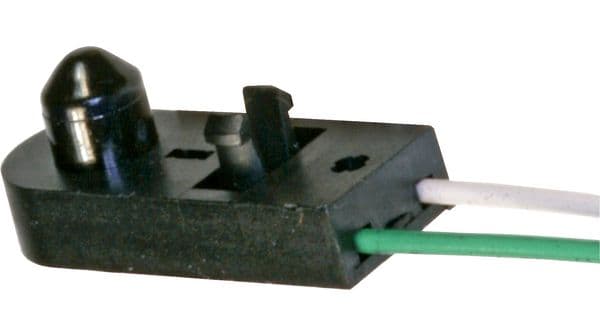

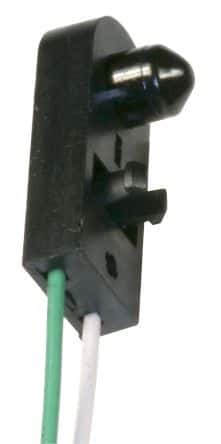

Transmissive photointerrupter featuring a phototransistor output. Collector Emitter Breakdown Voltage of 30V and a maximum Collector Current of 50mA. Operates with a Forward Current of 100mA and a maximum Power Dissipation of 250mW. This NPN polarity device has a sensing distance of 12 inches and a viewing angle of 25 degrees, with an 880nm wavelength. Packaged as a 2-pin module, it is RoHS compliant and suitable for operation between -40°C and 85°C.
Sign in to ask questions about the TT OPB100-SZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TT OPB100-SZ technical specifications.
| Package/Case | Module |
| Collector Emitter Breakdown Voltage | 30V |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 30V |
| Forward Current | 100mA |
| Lead Free | Lead Free |
| Max Breakdown Voltage | 30V |
| Max Collector Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 250mW |
| Mount | Snap in |
| Number of Elements | 1 |
| Output Configuration | Phototransistor |
| Output Voltage | 30V |
| Package Quantity | 25 |
| Packaging | Bulk |
| Polarity | NPN |
| Power Consumption | 250mW |
| Power Dissipation | 250mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 2V |
| RoHS Compliant | Yes |
| Sensing Distance | 12inch |
| Viewing Angle | 25° |
| Wavelength | 880nm |
| RoHS | Compliant |
