Transistor output slotted switch featuring a 1.91mm slot width and a single-channel phototransistor output. Offers a 30V collector-emitter breakdown voltage and a maximum collector current of 50mA. Operates within a supply voltage range of 4.75V to 5.25V DC and has a power dissipation of 100mW. Designed for through-hole mounting with a sensing distance of 4.78mm and a wavelength of 890nm. This component is RoHS compliant and operates between -40°C and 85°C.
MountingThrough Hole
Power100mW
Quick Jump:
Technical Specifications
TT OPB350L250 technical specifications.
General
| Collector Emitter Breakdown Voltage | 30V |
| Collector Emitter Voltage (VCEO) | 30V |
| Collector-emitter Voltage-Max | 30V |
| Forward Current | 50mA |
| Lead Free | Lead Free |
| Max Collector Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 5.25V |
| Min Supply Voltage (DC) | 4.75V |
| Mount | Through Hole |
| Number of Elements | 1 |
| Output Configuration | Phototransistor |
| Output Current | 50mA |
| Package Quantity | 25 |
| Packaging | Bulk |
| Power Dissipation | 100mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 2V |
| RoHS Compliant | Yes |
| Sensing Distance | 4.78mm |
| Series | OPB350 |
| DC Rated Voltage | 30V |
| Wavelength | 890nm |
Compliance
| RoHS | Compliant |
Datasheet
TT OPB350L250 Datasheet
Download the complete datasheet for TT OPB350L250 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

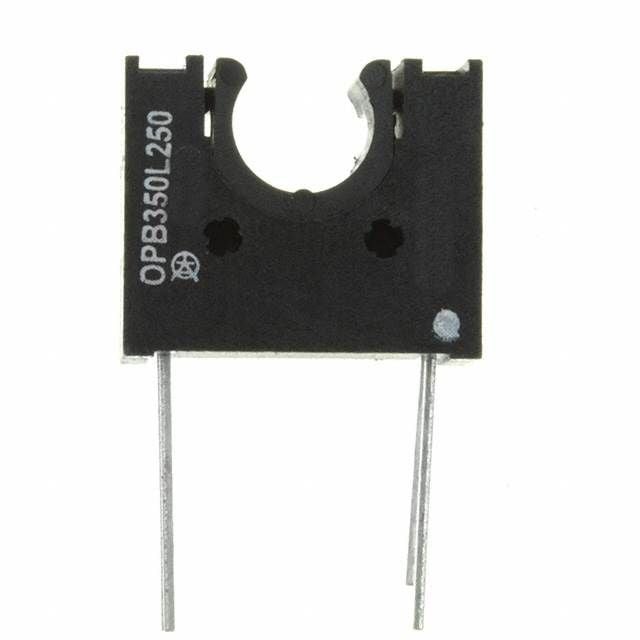

Product Images
