Transmissive photointerrupter featuring a phototransistor output. This general-purpose optical sensor operates with a 30V collector-emitter breakdown voltage and a 50mA forward current. It offers a 4.78mm sensing distance and a 890nm wavelength, with a maximum power dissipation of 100mW. The plastic body construction supports chassis mounting via screw, and it operates within a temperature range of -40°C to 85°C.
MountingChassis Mount, Screw
Power100mW
Quick Jump:
Technical Specifications
TT OPB350W250Z technical specifications.
General
| Body Material | Plastic |
| Collector Emitter Breakdown Voltage | 30V |
| Collector Emitter Voltage (VCEO) | 30V |
| Collector-emitter Voltage-Max | 30V |
| Forward Current | 50mA |
| Height | 13.34mm |
| Lead Free | Lead Free |
| Length | 29.59mm |
| Max Collector Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 5.25V |
| Min Supply Voltage (DC) | 4.75V |
| Mount | Chassis Mount, Screw |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Configuration | Phototransistor |
| Output Current | 50mA |
| Output Power | 100mW |
| Package Quantity | 25 |
| Packaging | Bulk |
| Power Dissipation | 100mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 2V |
| RoHS Compliant | Yes |
| Sensing Distance | 4.78mm |
| Series | OPB350 |
| DC Rated Voltage | 30V |
| Wavelength | 890nm |
| Width | 7.62mm |
Compliance
| RoHS | Compliant |
Datasheet
TT OPB350W250Z Datasheet
Download the complete datasheet for TT OPB350W250Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

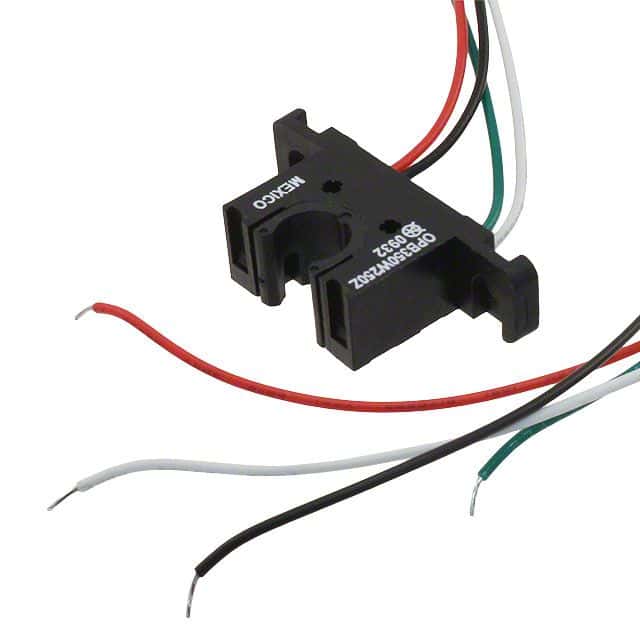

Product Images
