Rectangular diffuse photoelectric sensor featuring a phototransistor output and 1 channel. This panel mount component operates with a 1.7V supply voltage and offers a sensing distance of 0.15 inches. Key electrical specifications include a 30V collector-emitter breakdown voltage, 40mA forward current, and 25mA maximum collector current. Operating across a temperature range of -40°C to 80°C, this RoHS compliant device utilizes an 890nm wavelength.
MountingThrough Hole
Power100mW
Quick Jump:
Technical Specifications
TT OPB703 technical specifications.
General
| Collector Emitter Breakdown Voltage | 30V |
| Collector Emitter Voltage (VCEO) | 30V |
| Collector-emitter Voltage-Max | 30V |
| Forward Current | 40mA |
| Input Current | 40mA |
| Lead Free | Lead Free |
| Max Breakdown Voltage | 30V |
| Max Collector Current | 25mA |
| Max Input Current | 40mA |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 30V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Operating Supply Voltage | 1.7V |
| Output Type | Phototransistor |
| Output Voltage | 30V |
| Package Quantity | 25 |
| Packaging | Bulk |
| Power Dissipation | 100mW |
| Reach SVHC Compliant | No |
| Reverse Voltage | 2V |
| Reverse Voltage (DC) | 2V |
| RoHS Compliant | Yes |
| Sensing Distance | 0.15inch |
| DC Rated Voltage | 30V |
| Wavelength | 890nm |
Compliance
| RoHS | Compliant |
Datasheet
TT OPB703 Datasheet
Download the complete datasheet for TT OPB703 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

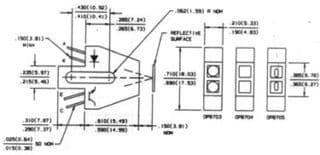

Product Images
