Diffuse photoelectric sensor featuring a single-channel phototransistor output. This through-hole mount component operates with a 5V supply voltage and offers a sensing distance of 6.35mm. Key electrical specifications include a 30V collector-emitter breakdown voltage, 50mA forward current, and 25mA maximum collector current. The device is RoHS compliant and packaged in a TO-72 plastic package.
PackageTO-72
MountingThrough Hole
Power150mW
Quick Jump:
Technical Specifications
TT OPB710 technical specifications.
General
| Package/Case | TO-72 |
| Collector Emitter Breakdown Voltage | 30V |
| Collector Emitter Voltage (VCEO) | 30V |
| Forward Current | 50mA |
| Input Current | 50mA |
| Lead Free | Lead Free |
| Max Collector Current | 25mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 5V |
| Output Type | Phototransistor |
| Output Voltage | 30V |
| Packaging | Bulk |
| Power Dissipation | 150mW |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 3V |
| Reverse Voltage (DC) | 3V |
| RoHS Compliant | Yes |
| Sensing Distance | 6.35mm |
| DC Rated Voltage | 30V |
| Wavelength | 935nm |
Compliance
| RoHS | Compliant |
Datasheet
TT OPB710 Datasheet
Download the complete datasheet for TT OPB710 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

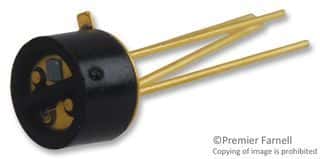

Product Images
