Through-beam photoelectric sensor featuring a phototransistor output. Surface mountable with a 25.4mm maximum sensing distance and 890nm wavelength. Operates with a 50mA forward current and 20mA maximum collector current. Collector-emitter breakdown voltage is 30V, with a 5V reverse voltage. Packaged in tape and reel, this RoHS compliant component offers a 15µs response time.
PackageSMD/SMT
MountingSurface Mount
Power130mW
Quick Jump:
Technical Specifications
TT OPB733TR technical specifications.
General
| Package/Case | SMD/SMT |
| Collector Emitter Breakdown Voltage | 30V |
| Collector Emitter Voltage (VCEO) | 30V |
| Collector-emitter Voltage-Max | 30V |
| Fall Time | 15000ns |
| Forward Current | 50mA |
| Lead Free | Lead Free |
| Max Breakdown Voltage | 30V |
| Max Collector Current | 20mA |
| Max Input Current | 20mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Output Voltage | 30V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Output Current | 20mA |
| Output Type | Phototransistor |
| Output Voltage | 30V |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Power Dissipation | 130mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 15us |
| Reverse Breakdown Voltage | 5V |
| Reverse Voltage | 5V |
| Reverse Voltage (DC) | 5V |
| RoHS Compliant | Yes |
| Sensing Distance | 25.4mm |
| Wavelength | 890nm |
Compliance
| RoHS | Compliant |
Datasheet
TT OPB733TR Datasheet
Download the complete datasheet for TT OPB733TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

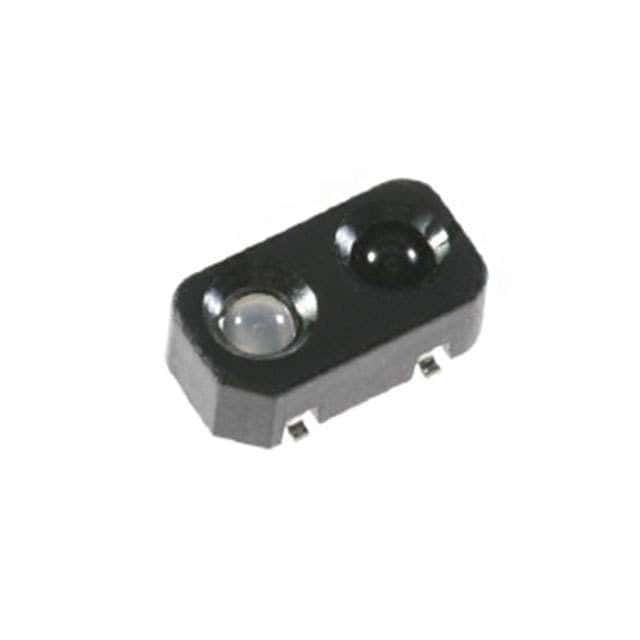

Product Images
