MountingThrough Hole
Power100mW
Quick Jump:
Technical Specifications
TT OPB818 technical specifications.
General
| Collector Emitter Breakdown Voltage | 30V |
| Forward Current | 20mA |
| Input Current | 20mA |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Operating Supply Voltage | 1.7V |
| Output Configuration | Phototransistor |
| Packaging | Bulk |
| Power Dissipation | 100mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 30V |
| Wavelength | 890nm |
Compliance
| RoHS | Compliant |
Datasheet
TT OPB818 Datasheet
Download the complete datasheet for TT OPB818 to view detailed technical specifications.
No datasheet is available for this part.

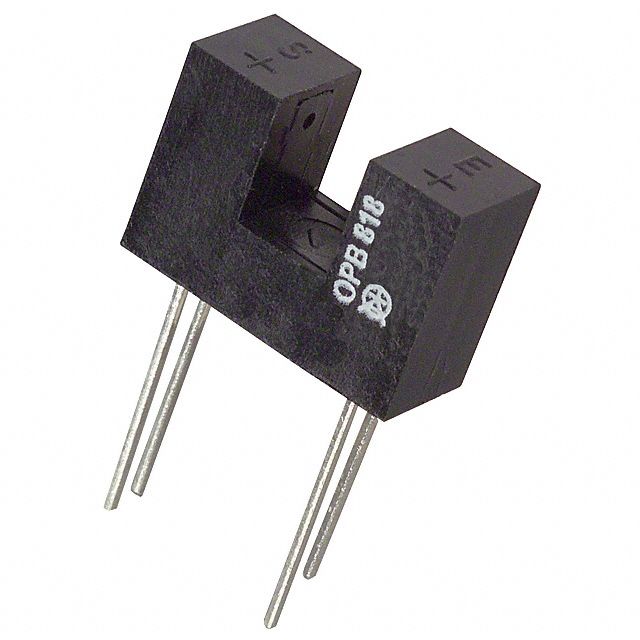

Product Images
