General purpose photodetector featuring a 3-pin TO-18 package for through-hole mounting. This single-channel optical sensor operates with a 5V supply voltage, accepting a range of 4.5V to 5.5V. It offers a maximum output current of 100mA and a power dissipation of 120mW. Key performance characteristics include a 70ns fall time and a 5000ns propagation delay, with sensitivity at a 935nm wavelength.
PackageTO-18
Current15mA
MountingThrough Hole
Power120mW
Quick Jump:
Technical Specifications
TT OPL801 technical specifications.
General
| Application(s) | GENERAL PURPOSE |
| Package/Case | TO-18 |
| Fall Time | 70ns |
| Height | 6.86mm |
| Lead Free | Lead Free |
| Length | 5.84mm |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 100mA |
| Max Power Dissipation | 120mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Functions | 1 |
| Operating Supply Voltage | 5V |
| Output Type | PUSH-PULL |
| Package Quantity | 25 |
| Packaging | Bulk |
| Power Dissipation | 120mW |
| Propagation Delay | 5000ns |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | Photologic® |
| Shape | Round |
| Supply Current | 15mA |
| Turn-On Delay Time | 5000ns |
| Wavelength | 935nm |
Compliance
| RoHS | Not Compliant |
Datasheet
TT OPL801 Datasheet
Download the complete datasheet for TT OPL801 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

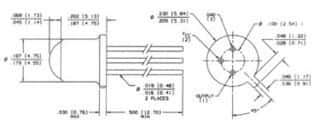

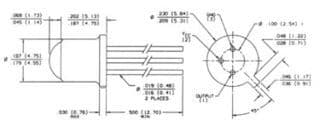

Product Images
